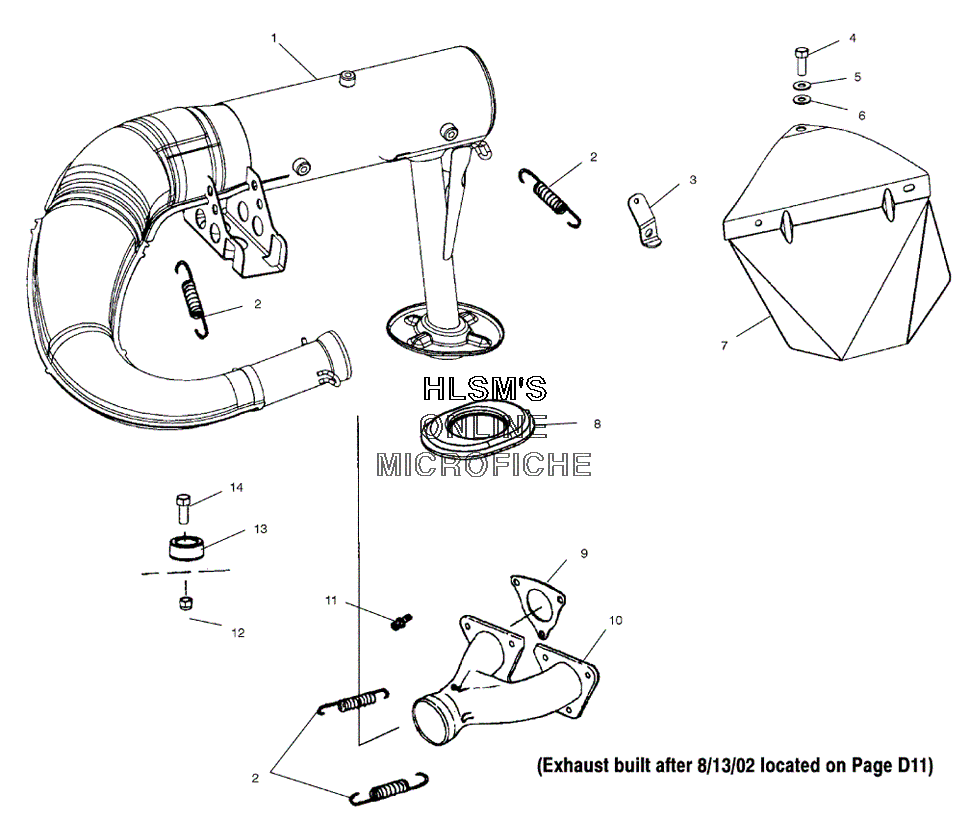

EXHAUST SYSTEM (BUILT BEFORE 8/13/02) для Polaris SUPERSPORT EDGE X F/O (S03NA5BS) - 2003 года выпуска
-
№АртикулНазвание
-
11261068-029 TUNED PIPE (BLACK)TUNED PIPE (BLACK)
-
27041687 SPRINGSPRING
-
35244450 RETAINER, SPRINGRETAINER, SPRING
-
47515354 BOLTBOLT
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67555734 WASHER, FLATWASHER, FLAT
-
75243214 SHIELD MUFFLERSHIELD MUFFLER
-
85411902 BOOT, OUTLETBOOT, OUTLET
-
101260981-029 MANIFOLD HI-TEM (BLACK)MANIFOLD HI-TEM (BLACK)
-
117517555 SCREW, HEXAGON SOCKETSCREW, HEXAGON SOCKET
-
127547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
135433576 DAMPENER VIBRATIONSDAMPENER VIBRATIONS
-
147517935 SCREW HEXAGON SOCKET CS ZY3SCREW HEXAGON SOCKET CS ZY3
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE - REVERSE MODELS
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVE (ELECTRIC START MODELS)
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS (EDGE X)
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- • EXHAUST SYSTEM (BUILT BEFORE 8/13/02)
- FRAME - CHASSIS
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL MOUNTING (EDGE)
- SEAT W/ GAS TANK ASSEMBLY
- SHIFT - REVERSE MODELS
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - COMPRESSION DAMPING RESERVOIR (EDGE)
- SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR (EDGE)
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY (EDGE)
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY (EDGE)
- SUSPENSION - REAR TRACK
- SUSPENSION - REAR TRACK SHOCK (EDGE)
- TOOL KIT
- WINDSHIELD/GUAGES/HOOD RETAINER
