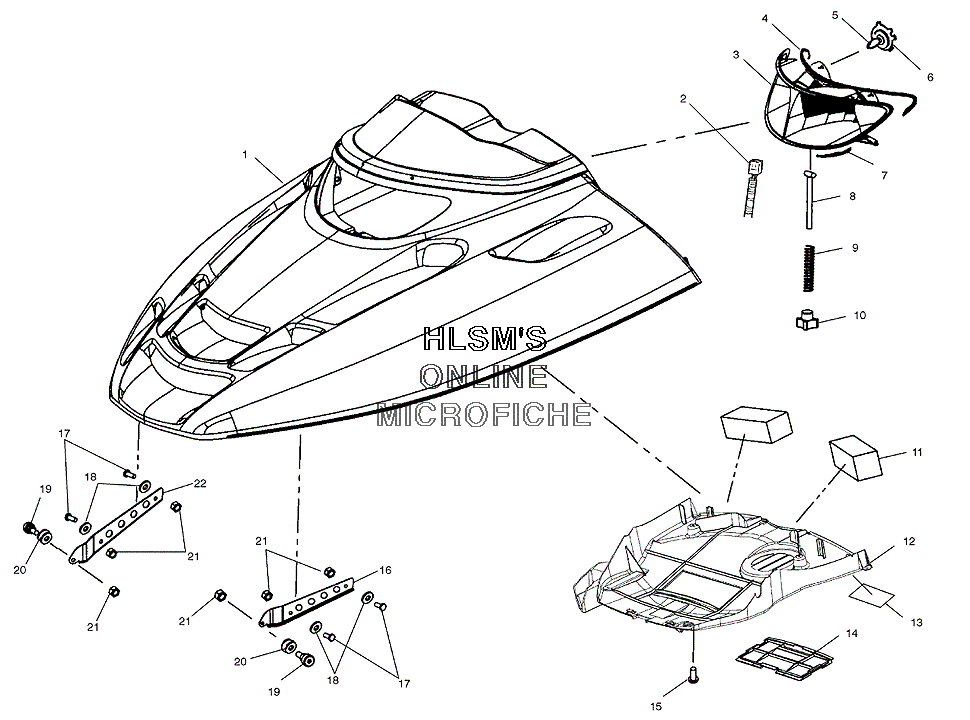

HOOD ASSEMBLY W/ HEADLIGHT для Polaris SUPERSPORT EDGE X F/O (S03NA5BS) - 2003 года выпуска
-
№АртикулНазвание
-
12632551-293 HOOD, ASSY EDGE 2H SERVICE (RED) (IF BUILT BEFORE 8/13/02)HOOD, ASSY EDGE 2H SERVICE (RED) (IF BUILT BEFORE 8/13/02)
-
12632661-293 HOOD ASSY EDGE 2H, SERVICE (RED) (IF BUILT AFTER 8/13/02)HOOD ASSY EDGE 2H, SERVICE (RED) (IF BUILT AFTER 8/13/02)
-
12632551-177 HOOD, ASSY EDGE 2H SERVICE (BLACK) (IF BUILT BEFORE 8/13/02)HOOD, ASSY EDGE 2H SERVICE (BLACK) (IF BUILT BEFORE 8/13/02)
-
12632661-177 HOOD ASSY EDGE 2H, SERVICE (BLACK) (IF BUILT AFTER 8/13/02)HOOD ASSY EDGE 2H, SERVICE (BLACK) (IF BUILT AFTER 8/13/02)
-
12632551-341 HOOD, ASSY EDGE 2H SERVICE (BLUE) (IF BUILT BEFORE 8/13/02)HOOD, ASSY EDGE 2H SERVICE (BLUE) (IF BUILT BEFORE 8/13/02)
-
12632661-341 HOOD ASSY EDGE 2H, SERVICE (BLUE) (IF BUILT AFTER 8/13/02)HOOD ASSY EDGE 2H, SERVICE (BLUE) (IF BUILT AFTER 8/13/02)
-
22461015 HARNESS HEADLIGHT, E/RHARNESS HEADLIGHT, E/R
-
32410132 HEADLAMP ASSY, 2-BULB (INCL. BULBS)HEADLAMP ASSY, 2-BULB (INCL. BULBS)
-
45812175 HEALDIGHT, SEAL ONE PIECEHEALDIGHT, SEAL ONE PIECE
-
52870448 BULB, QUARTZ. HEADLIGHT (H4, 60/55W)BULB, QUARTZ. HEADLIGHT (H4, 60/55W)
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 SEAL, HEADLIGHT ONE PIECESEAL, HEADLIGHT ONE PIECE
-
87517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
97041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632491 PLENUM, FOIL ASSYPLENUM, FOIL ASSY
-
125812324 FOILFOIL
-
125811948 FOIL 4.5X1.0FOIL 4.5X1.0
-
137170740 DECAL SUSPENSION, SET UP EDGEDECAL SUSPENSION, SET UP EDGE
-
137079333 DECAL SUSPENSION SET UP, M-10DECAL SUSPENSION SET UP, M-10
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/BLACK/LEFT)HINGE (UPPER/BLACK/LEFT)
-
177512240 BOLTBOLT
-
187558301 WASHER, FLATWASHER, FLAT
-
197512113 BOLTBOLT
-
205332403 SPACERSPACER
-
217542122 NUT NYLOKNUT NYLOK
-
225243568-067 HINGE (UPPER/BLACK/RIGHT)HINGE (UPPER/BLACK/RIGHT)
