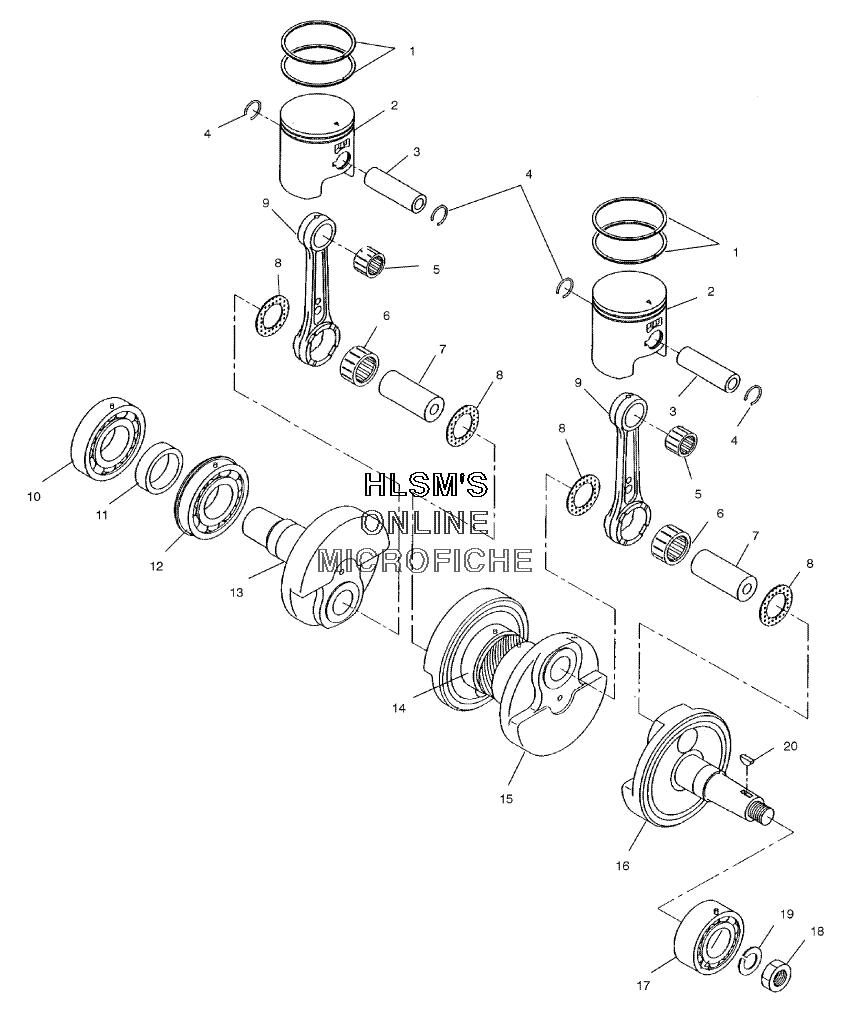

PISTON AND CRANKSHAFT для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска
-
№АртикулНазвание
-
13086988 SET PISTON, RING (STD)SET PISTON, RING (STD)
-
13086989 SET PISTON, RING (0.25MM/.010O/S)SET PISTON, RING (0.25MM/.010O/S)
-
13086990 SET PISTON, RING (0.50MM/.020O/S)SET PISTON, RING (0.50MM/.020O/S)
-
23087024 PISTON (STD)PISTON (STD)
-
23087025 PISTON (.10"/.25 O/S)PISTON (.10"/.25 O/S)
-
23087026 SET, PISTON (0.50M/.020O/S) (INCL. 4)SET, PISTON (0.50M/.020O/S) (INCL. 4)
-
33083838 PIN, PISTONPIN, PISTON
-
43084167 CLIP, PISTON PINCLIP, PISTON PIN
-
53083216 BEARING, SMALL ENDBEARING, SMALL END
-
63086390 BEARING END, LARGEBEARING END, LARGE
-
73083456 PIN, CRANK 2PIN, CRANK 2
-
83083277 SPACER, CRANKPINSPACER, CRANKPIN
-
93240083 ROD, CONNECTINGROD, CONNECTING
-
103085754 BEARING, BALLBEARING, BALL
-
113085677 SPACERSPACER
-
123085753 BEARING, BALLBEARING, BALL
-
133085675 CRANKSHAFT #3 (PTO SIDE)CRANKSHAFT #3 (PTO SIDE)
-
143084586 BEARING, BALLBEARING, BALL
-
153085674 CRANKSHAFT #2 CENTER (INCL. 7)CRANKSHAFT #2 CENTER (INCL. 7)
-
163087176 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
163087177 CRANKSHAFT 1 (MAG SIDE)CRANKSHAFT 1 (MAG SIDE)
-
173084681 BEARING, BALLBEARING, BALL
-
183083093 NUTNUT
-
193083094 WASHER SPRINGWASHER SPRING
-
203080130 KEY WOODRUFFKEY WOODRUFF
