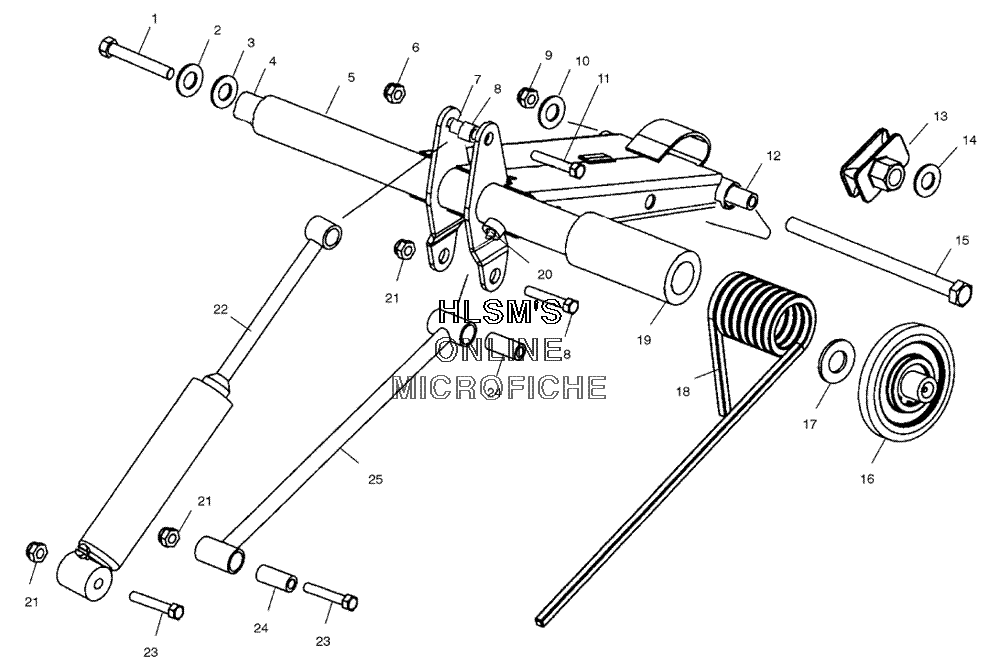

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45131450 SHAFTSHAFT
-
51541432-067 WELD, TORQUE ARM XL (REAR/BLACK)WELD, TORQUE ARM XL (REAR/BLACK)
-
67542324 NUT, NYLOKNUT, NYLOK
-
75333030 BUSHING, REAR SHOCKBUSHING, REAR SHOCK
-
85430537 BUSHINGBUSHING
-
97547064 NUT, NYLOKNUT, NYLOK
-
107558402 WASHER, FLATWASHER, FLAT
-
117512329 BOLTBOLT
-
125333483 TUBETUBE
-
135432983 ROLLER, SPRING ADJUST SQUAREROLLER, SPRING ADJUST SQUARE
-
147080394 CLIP, PUSH ONCLIP, PUSH ON
-
157517757 SCREWSCREW
-
161541285 WHEEL, CARRIER W/COLLARWHEEL, CARRIER W/COLLAR
-
177556301 BUSHINGBUSHING
-
187041627-067 SPRING TORSION (LEFT/BLACK) (.347/77)SPRING TORSION (LEFT/BLACK) (.347/77)
-
187041628-067 SPRING TORSION (RIGHT/BLACK) (.347/77)SPRING TORSION (RIGHT/BLACK) (.347/77)
-
187041631-067 SPRING TORSION (LEFT/BLACK) (.375/77)SPRING TORSION (LEFT/BLACK) (.375/77)
-
187041632-067 SPRING TORSION (RIGHT/BLACK) (.375/77)SPRING TORSION (RIGHT/BLACK) (.375/77)
-
195521475 TUBE, SPRINGTUBE, SPRING
-
207080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
217542439 NUT, NYLOKNUT, NYLOK
-
227041757 SHOCK, ADJUST XL TRACK (REAR)SHOCK, ADJUST XL TRACK (REAR)
-
237515415 SCREWSCREW
-
245010252 BUSHINGBUSHING
-
251541306-067 ROD, SHOCK XL 136 (BLACK)ROD, SHOCK XL 136 (BLACK)
