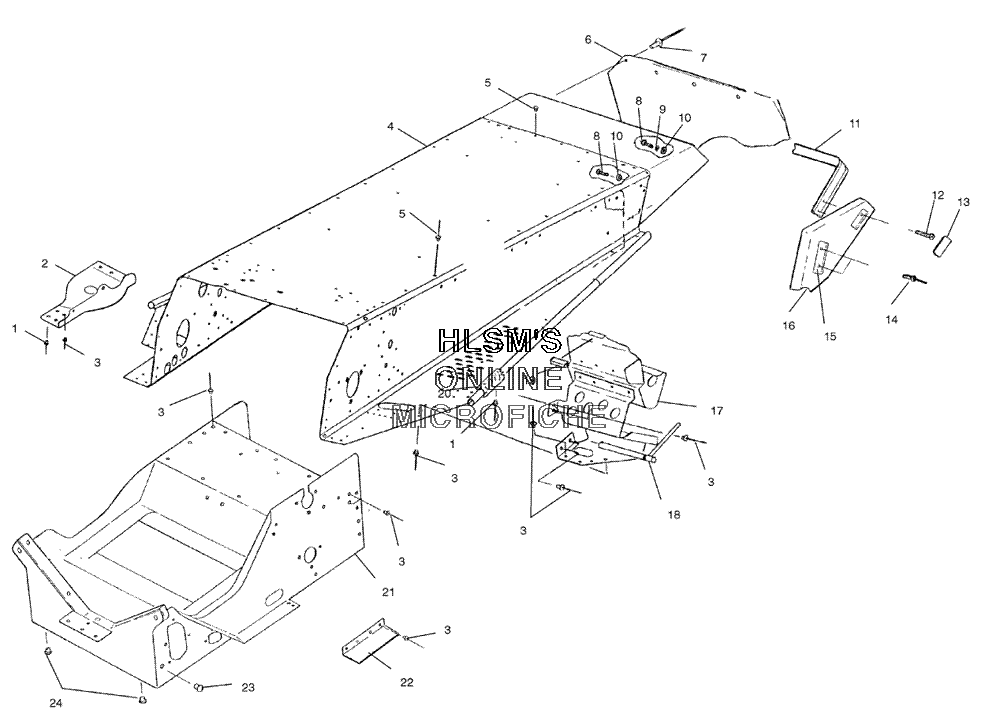

TUNNEL ASSEMBLY для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17661130 RIVETRIVET
-
25243419 GUARD CHAINCASE SUMP, TUNNELGUARD CHAINCASE SUMP, TUNNEL
-
37661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
41013592 HOUSING, F/C RMK SPIERCE ASSYHOUSING, F/C RMK SPIERCE ASSY
-
57661837 RIVETRIVET
-
65410394-1106 FLAP SNOW (BLACK W/WHITE)FLAP SNOW (BLACK W/WHITE)
-
77621418 RIVET, POPRIVET, POP
-
87512240 BOLTBOLT
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
107558301 WASHER, FLATWASHER, FLAT
-
112670169 BUMPER ASSY (REAR/BLACK)BUMPER ASSY (REAR/BLACK)
-
127512084 SCREWSCREW
-
132670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
147621515 RIVETRIVET
-
155131546 SUPPORT, HAND HOLDSUPPORT, HAND HOLD
-
165432562 COVER, BUMPER W/HANDLE (LEFT)COVER, BUMPER W/HANDLE (LEFT)
-
165432563 COVER, BUMPER W/HANDLE (RIGHT)COVER, BUMPER W/HANDLE (RIGHT)
-
171012683 FOOTREST ASSYFOOTREST ASSY
-
171012684 FOOTREST ASSY (RIGHT)FOOTREST ASSY (RIGHT)
-
181012812-067 SUPPORT, TUNNEL (LEFT/BLACK)SUPPORT, TUNNEL (LEFT/BLACK)
-
181012813-067 SUPPORT, TUNNEL (RIGHT/BLACK)SUPPORT, TUNNEL (RIGHT/BLACK)
-
195521238 EXTRUSION, CLUTCH GUARDEXTRUSION, CLUTCH GUARD
-
205243112 GRIP, TUNNEL ROLLGRIP, TUNNEL ROLL
-
211012689 WELD BULKHEADWELD BULKHEAD
-
225222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
237080416 PLUG, HOLEPLUG, HOLE
-
247080398 PLUG, HOLEPLUG, HOLE
