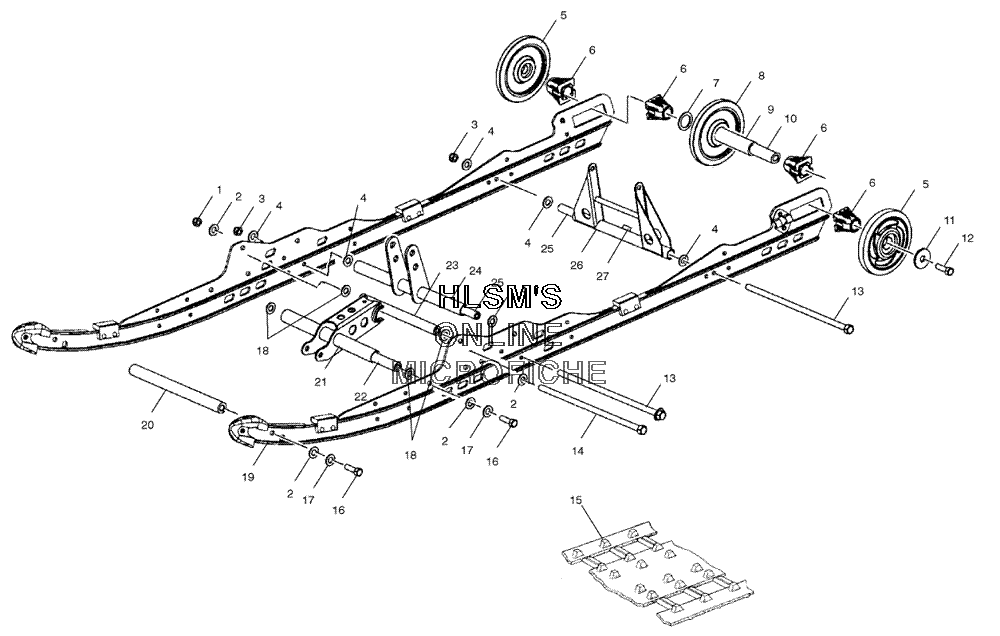

SUSPENSION - REAR TRACK для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17542411 NUT, FLEXLOCKNUT, FLEXLOCK
-
27555806 WASHER, FLATWASHER, FLAT
-
37547064 NUT, NYLOKNUT, NYLOK
-
47555958 WASHER, FLATWASHER, FLAT
-
51590303-293 WHEEL, IDLER HP ASSY (INDY RED)WHEEL, IDLER HP ASSY (INDY RED)
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
95333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
117556130 WASHERWASHER
-
127517731 BOLTBOLT
-
137517207 SCREWSCREW
-
147517353 SCREWSCREW
-
155411955 TRACKTRACK
-
167517247 SCREWSCREW
-
177552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
187555797 WASHER, FLATWASHER, FLAT
-
195521528 SLIDER, XL SERVICE BASICSLIDER, XL SERVICE BASIC
-
205020868 SHAFTSHAFT
-
211541520-067 BRACKET, SHOCK FTS XL 1.28 (BLACK)BRACKET, SHOCK FTS XL 1.28 (BLACK)
-
225020866 SHAFTSHAFT
-
235132727 SHAFTSHAFT
-
241541484-067 SHOCK PIVOT ARM XL (BLACK)SHOCK PIVOT ARM XL (BLACK)
-
255333477 TUBETUBE
-
261541564-067 WELD PIVOT ARM, XL REINFORCEMENT (REAR)WELD PIVOT ARM, XL REINFORCEMENT (REAR)
-
277080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
