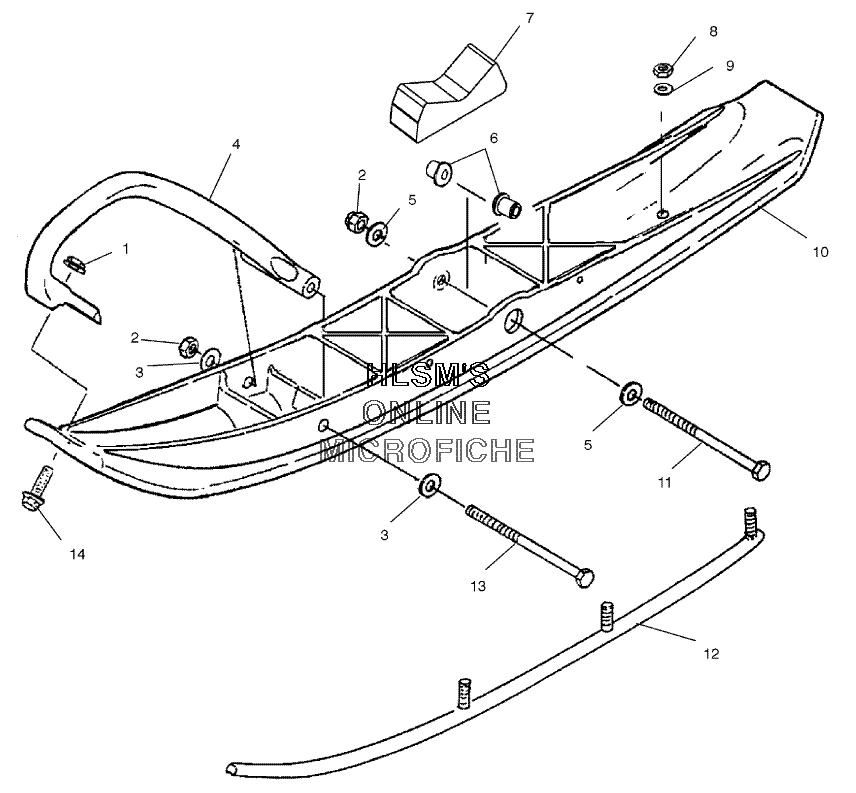

SKI ASSEMBLY для Polaris TRAIL RMK (S03SR5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-070 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
57556130 WASHERWASHER
-
65132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOKNUT, NYLOK
-
97556175 WASHERWASHER
-
101820929-070 COMP SKI, BLANK SERVICE ASSY (BLACK) (INCL. 6)COMP SKI, BLANK SERVICE ASSY (BLACK) (INCL. 6)
-
117517968 SCREW HEXAGON/CAP-YSCREW HEXAGON/CAP-Y
-
122872566 SKAG, 3" CARBIDE 90 DEGREESKAG, 3" CARBIDE 90 DEGREE
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
Все узлы модели:
- ACCS SYSTEM
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- • SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- TUNNEL ASSEMBLY
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
