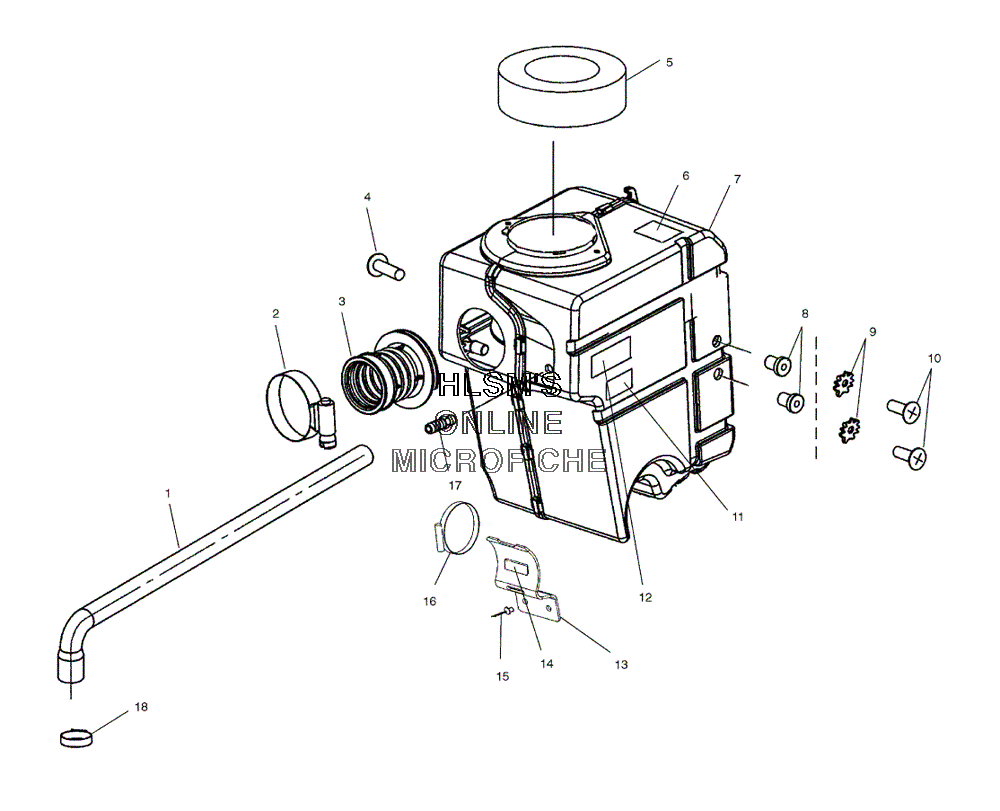

AIR BOX для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
15412190 HOSE BREATHERHOSE BREATHER
-
27080656 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
35411964 BOOT CARBURETOR ADAPTERBOOT CARBURETOR ADAPTER
-
47512095 SCREWSCREW
-
55811882 FOAMFOAM
-
67075351 DECAL, CAUTIONDECAL, CAUTION
-
71253503 AIR SILENCER ASSYAIR SILENCER ASSY
-
87541923 NUT WELLNUT WELL
-
97552604 WASHERWASHER
-
107512279 SCREWSCREW
-
117073426 DECAL, GREASINGDECAL, GREASING
-
127073820 DECAL, ADJUSTER DRIVEN CLUTCHDECAL, ADJUSTER DRIVEN CLUTCH
-
135246801 BRACKET FUEL, FILTERBRACKET FUEL, FILTER
-
145812435 PAD FOAMPAD FOAM
-
157621472 RIVETRIVET
-
167080451 CLAMP, HOSECLAMP, HOSE
-
177052163 FITTINGFITTING
-
187080694 CLAMP, HOSE SPRINGCLAMP, HOSE SPRING
