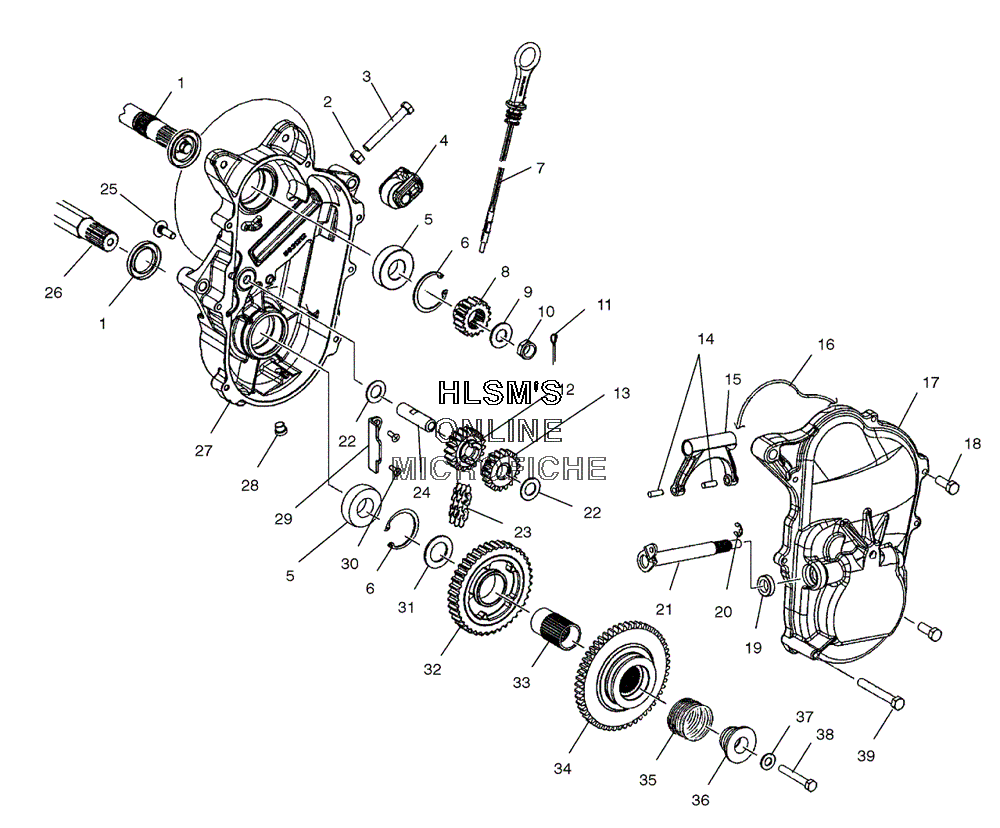

CHAINCASE ASSEMBLY для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 TIGHTENER, CHAIN ASSYTIGHTENER, CHAIN ASSY
-
53514309 BEARING, BALLBEARING, BALL
-
67718406 RING, RETAININGRING, RETAINING
-
71332143 DIPSTICK ASSYDIPSTICK ASSY
-
83221095 SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107547202 NUT THIN, NYLON INSERT YNUT THIN, NYLON INSERT Y
-
117661203 PIN, COTTERPIN, COTTER
-
121341241 SPROCKET (PINION ASSYSPROCKET (PINION ASSY
-
123554508 BEARING, NEEDLEBEARING, NEEDLE
-
131341075 PINION GEAR, SPUR ASSYPINION GEAR, SPUR ASSY
-
133554508 BEARING, NEEDLEBEARING, NEEDLE
-
147661826 PIN, DOWELPIN, DOWEL
-
152200363 SHIFT FORK/SHAFT KIT (INCL. 14, 21)SHIFT FORK/SHAFT KIT (INCL. 14, 21)
-
155130805 FORK, SHIFTFORK, SHIFT
-
165411497 GASKET, O-RINGGASKET, O-RING
-
175133615 COVER CHAINCASE REV 7.92COVER CHAINCASE REV 7.92
-
187512242 SCREWSCREW
-
193610029 SEAL, OILSEAL, OIL
-
207710415 RING, RETAINERRING, RETAINER
-
211341388-067 WELD SHAFT SHIFT (BLACK)WELD SHAFT SHIFT (BLACK)
-
227555877 WASHER, THRUSTWASHER, THRUST
-
233221110 CHAIN, HYVO (72P, 3/4W)CHAIN, HYVO (72P, 3/4W)
-
245131770 SHAFT, PINION W/WRENCH FLATSSHAFT, PINION W/WRENCH FLATS
-
257515477 SCREW, CARRIAGESCREW, CARRIAGE
-
275134085 CHAINCASE (7.92 CD)CHAINCASE (7.92 CD)
-
287052115 PLUGPLUG
-
295246421 BRACKET CHAIN RETENTION, WITH TABBRACKET CHAIN RETENTION, WITH TAB
-
307512019 SCREWSCREW
-
317555871 WASHERWASHER
-
321341243 REVERSE GEAR HYVOREVERSE GEAR HYVO
-
323555104 BEARING, NEEDLEBEARING, NEEDLE
-
335130720 COUPLER, DRIVECOUPLER, DRIVE
-
341341410 REVERSE GEAR ASSYREVERSE GEAR ASSY
-
357041887 SPRING COMPRESSIONSPRING COMPRESSION
-
365130727 RETAINER, DRIVE COUPLERRETAINER, DRIVE COUPLER
-
377552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
387517581 SCREWSCREW
-
397518052 SCREW HEXAGONSCREW HEXAGON
