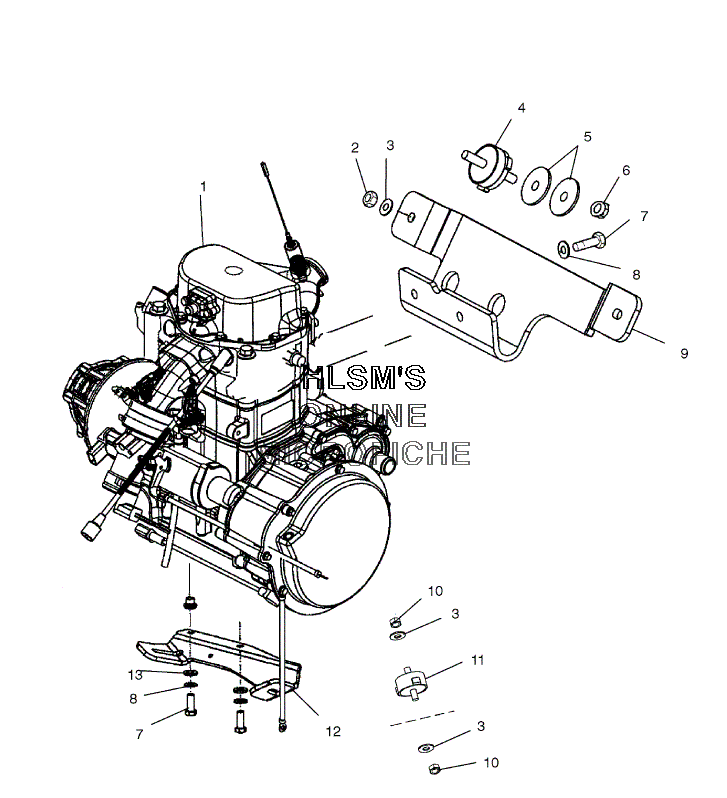

ENGINE MOUNTING W/ SHORT BLOCK для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
12202131 N/A,USE COMPONENTS NOTE:N/A,USE COMPONENTS NOTE:
-
27542402 NUT, FLEXLOCNUT, FLEXLOC
-
37555893 WASHER, FLATWASHER, FLAT
-
43021428 MOUNT ENGINE, 3/8 16MOUNT ENGINE, 3/8 16
-
57555915 WASHER, FLATWASHER, FLAT
-
67547180 NUT FLANGED, 3/8 16 NYLON ZNUT FLANGED, 3/8 16 NYLON Z
-
77512490 SCREWSCREW
-
87552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
95247220 BRACKET ENGINE MOUNT (FRONT)BRACKET ENGINE MOUNT (FRONT)
-
107547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
113021346 MOUNT ENGINEMOUNT ENGINE
-
125245483 STRAP ENGINE MOUNT (REAR)STRAP ENGINE MOUNT (REAR)
-
137555832 WASHERWASHER
