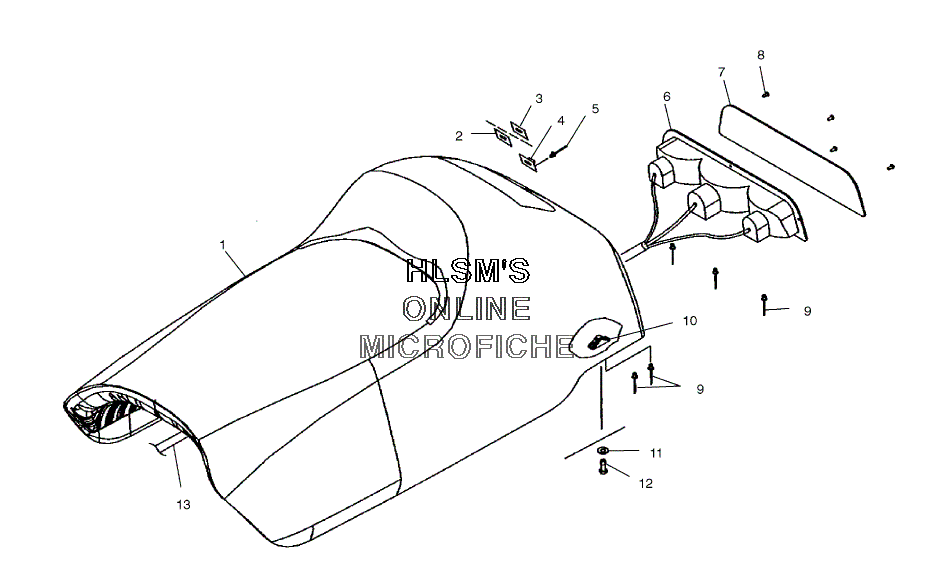

SEAT W/ TAILLIGHT для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
12683250 SEAT, RC ASSY (BLUE DIAMOND)SEAT, RC ASSY (BLUE DIAMOND)
-
12683251 SEAT COVER ASSY (BLUE DIAMOND)SEAT COVER ASSY (BLUE DIAMOND)
-
27080550 GROMMET, RELATCH 1" BOTTOMGROMMET, RELATCH 1" BOTTOM
-
37080549 GROMMET, RELATCH 1" TOPGROMMET, RELATCH 1" TOP
-
47080548 TWISTLOCK, RELATCH 1" WITH HOLETWISTLOCK, RELATCH 1" WITH HOLE
-
57621337 RIVETRIVET
-
65433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
-
64030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
64030045 BULBBULB
-
75430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
87511840 SCREWSCREW
-
97621319 RIVETRIVET
-
105631194 NUT SEATNUT SEAT
-
117558301 WASHER, FLATWASHER, FLAT
-
127517219 SCREWSCREW
-
132460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
