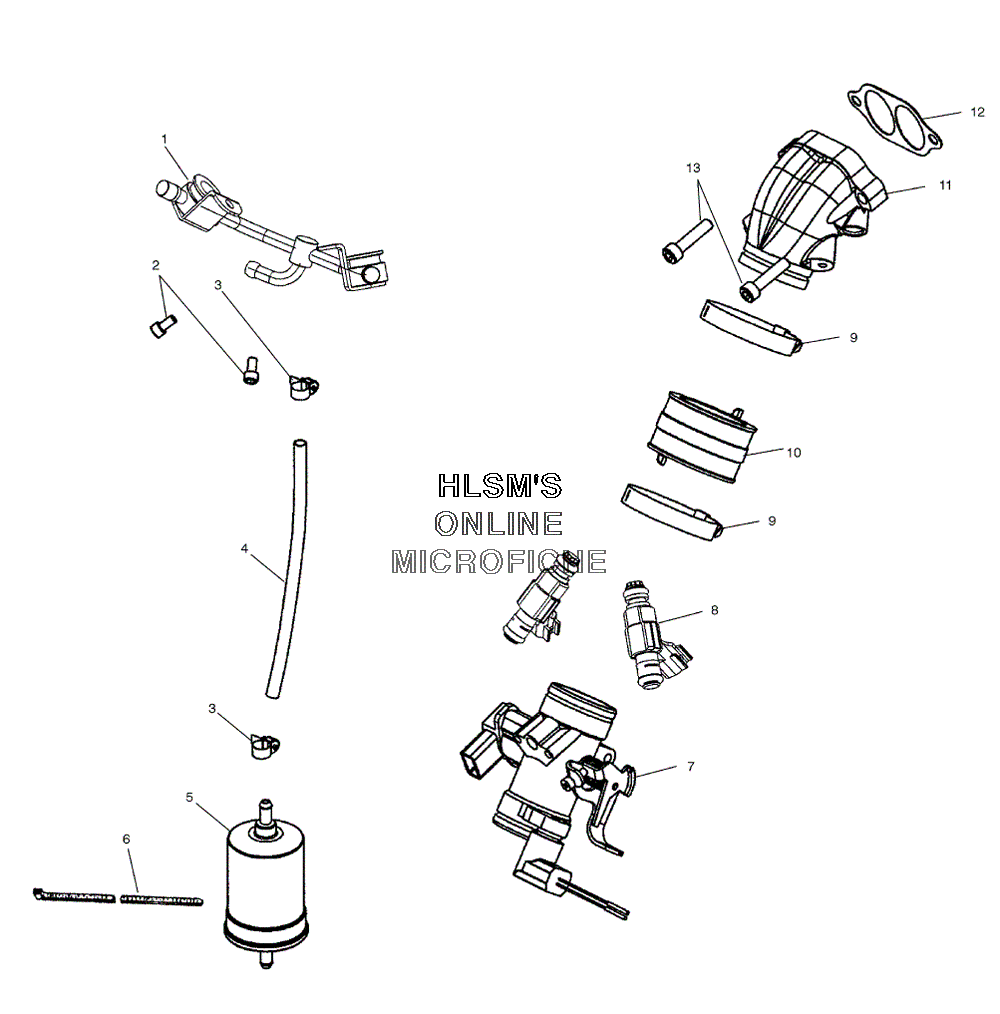

FUEL SYSTEM для Polaris FRONTIER CLASSIC (S04ND7DS) - 2004 года выпуска
-
№АртикулНазвание
-
12520280 FUEL RAILFUEL RAIL
-
27517405 SCREWSCREW
-
37080417 CLAMP, HOSE (SCREW TYPE)CLAMP, HOSE (SCREW TYPE)
-
48450044-153 FUEL LINE (5 FT)FUEL LINE (5 FT)
-
52520223 FILTER FUELFILTER FUEL
-
67080817 CABLE TIE (13")CABLE TIE (13")
-
71253496 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
72410351 SENSOR THROTTLE POSITIONSENSOR THROTTLE POSITION
-
81202576 FUEL INJECTOR ASSYFUEL INJECTOR ASSY
-
81500198 O-RINGO-RING
-
97081029 CLAMPCLAMP
-
105412103 ADAPTER THROTTLE BODYADAPTER THROTTLE BODY
-
115631365 MANIFOLD INTAKEMANIFOLD INTAKE
-
125812217 GASKET INTAKEGASKET INTAKE
-
137517966 SCREW SHCS Y/DSCREW SHCS Y/D
