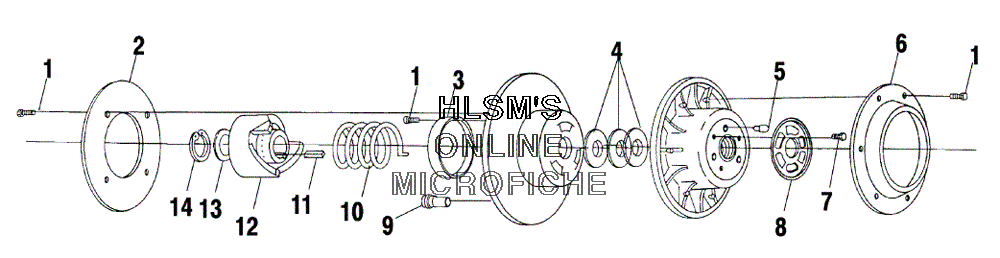

CLUTCH - DRIVEN для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE- DRIVEN, VENTEDPLATE- DRIVEN, VENTED
-
33569803 BUSHING- DRIVEN LARGE DUBUSHING- DRIVEN LARGE DU
-
47556804 WASHERWASHER
-
47555898 WASHERWASHER
-
47555865 WASHERWASHER
-
47556076 WASHERWASHER
-
55020653 PIN ADJUSTABLE DRIVENPIN ADJUSTABLE DRIVEN
-
65243157 CAP DRIVEN, VENTEDCAP DRIVEN, VENTED
-
77515133 SCREWSCREW
-
85222878 CAM, DRIVEN ADJUSTABLECAM, DRIVEN ADJUSTABLE
-
95430466 BUTTON RAMPBUTTON RAMP
-
107041499 SPRING, CLUTCHSPRING, CLUTCH
-
117721103 KEY SQUAREKEY SQUARE
-
125131297 RAMP, DRIVEN MACHRAMP, DRIVEN MACH
-
137556804 WASHERWASHER
-
147714804 RING, RETAININGRING, RETAINING
-
141321927 DRIVEN CLUTCH ASSY, BASIC W/B (INCL. ALL LESS 2, 6, 10, 12)DRIVEN CLUTCH ASSY, BASIC W/B (INCL. ALL LESS 2, 6, 10, 12)
