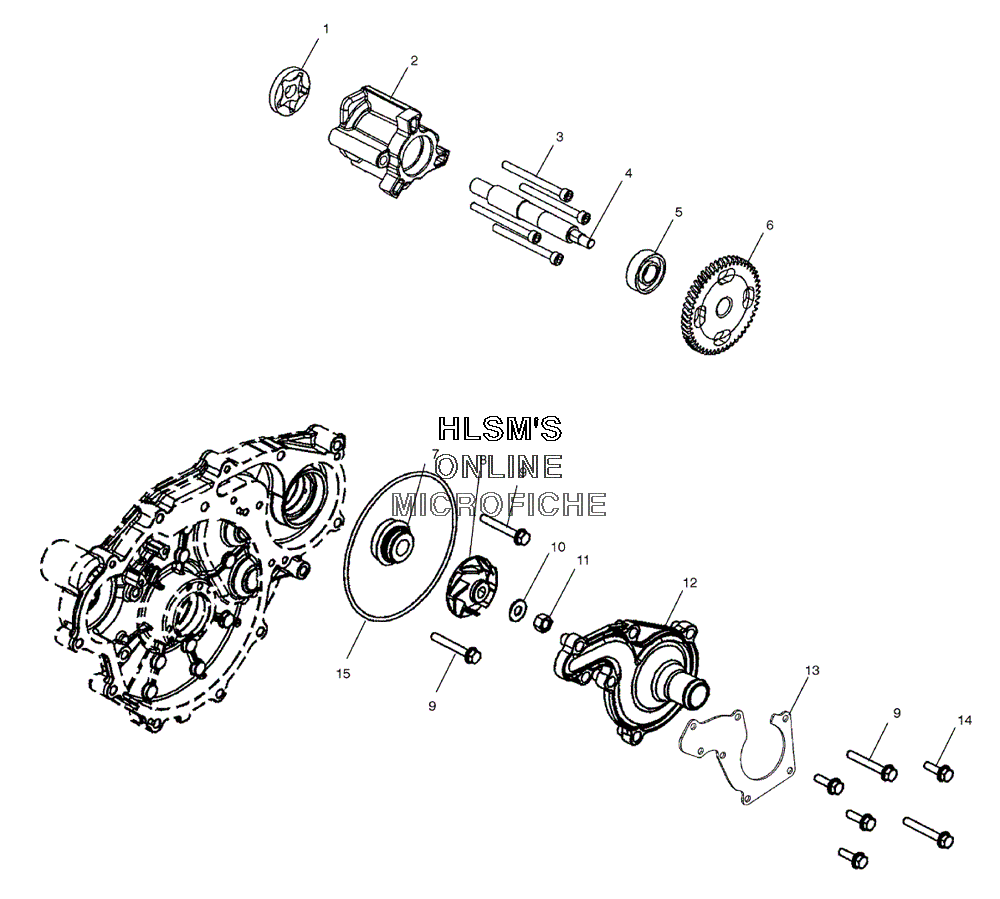

WATER PUMP/OIL PUMP для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска
-
№АртикулНазвание
-
11202079 GEROTOR ASSYGEROTOR ASSY
-
25131426 HOUSING, OILPUMPHOUSING, OILPUMP
-
37517807 SCREWSCREW
-
45131419 SHFT, OIL/ WATER PUMPSHFT, OIL/ WATER PUMP
-
53584404 BEARING, BALLBEARING, BALL
-
73610075 SEAL WATER PUMP FACESEAL WATER PUMP FACE
-
85433684 IMPELLER WATER PUMPIMPELLER WATER PUMP
-
97517950 SCREW, HEXAGON FLANGESCREW, HEXAGON FLANGE
-
107555874 WASHER, FLATWASHER, FLAT
-
117546804 NUT, HEX NYLOKNUT, HEX NYLOK
-
121202070 COVER, WATERPUMP ASSYCOVER, WATERPUMP ASSY
-
135246885 BRACKET COVER WATER PUMPBRACKET COVER WATER PUMP
-
147516823 SCREWSCREW
-
155812048 SEAL O-RINGSEAL O-RING
