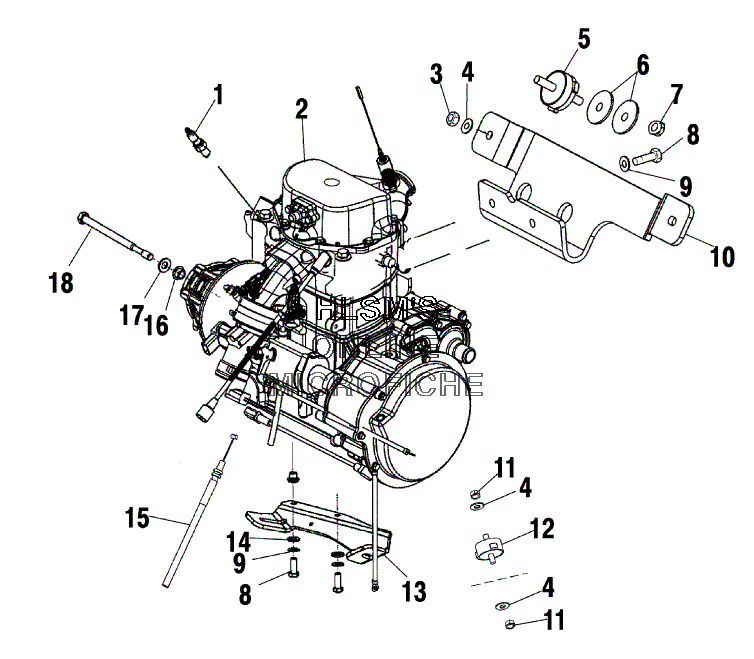

ENGINE MOUNTING W/ SHORT BLOCK для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска
-
№АртикулНазвание
-
13070195 SPARKPLUG CHAMP, RC7YCSPARKPLUG CHAMP, RC7YC
-
22202131 SEE NOTE:SEE NOTE:
-
37542402 NUT, FLEXLOCNUT, FLEXLOC
-
47555893 WASHER, FLATWASHER, FLAT
-
53021428 MOUNT ENG (3/8-16, 65DUR)MOUNT ENG (3/8-16, 65DUR)
-
67555915 WASHER, FLATWASHER, FLAT
-
77547180 NUT FLANGED NYLON- Z (3/8-16)NUT FLANGED NYLON- Z (3/8-16)
-
87512490 SCREWSCREW
-
97552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
105247220 BRACKET ENGINE MOUNT (FRONT)BRACKET ENGINE MOUNT (FRONT)
-
117547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
123021346 MOUNT ENGINE 3 TABMOUNT ENGINE 3 TAB
-
135245483 STRAP ENGINE MOUNT (REAR)STRAP ENGINE MOUNT (REAR)
-
147555832 WASHERWASHER
-
157081032 CABLE THROTTLECABLE THROTTLE
-
165131872 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
177556003 WASHERWASHER
-
187517501 SCREWSCREW
