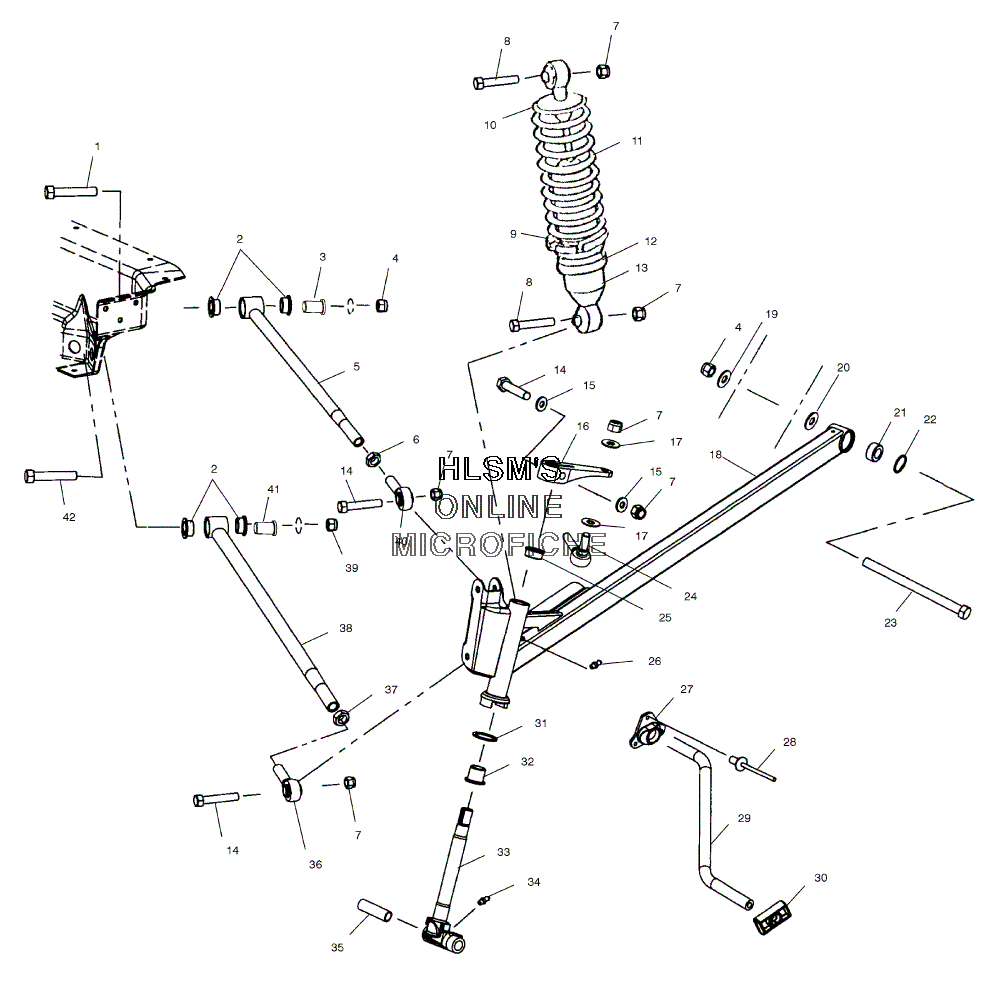

SUSPENSION - FRONT для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска
-
№АртикулНазвание
-
17517980 BOLT, HEXAGON CAPBOLT, HEXAGON CAP
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING SHOULDERBUSHING SHOULDER
-
47547066 NUT NYLOK, YNUT NYLOK, Y
-
51820679-385 WELD RADIUS ROD (UPPER/CLOUD SILVER)WELD RADIUS ROD (UPPER/CLOUD SILVER)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
105020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117042074-385 SPRING COMP (CLOUD SILVER)SPRING COMP (CLOUD SILVER)
-
121500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
137041932 SHOCK IFS, NITREXSHOCK IFS, NITREX
-
147517583 SCREW, HEXAGON/CPSCREW, HEXAGON/CP
-
157555832 WASHERWASHER
-
165132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
177555797 WASHER, FLATWASHER, FLAT
-
181821165-385 TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)
-
181821166-385 TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)
-
197555820 WASHER, FLATWASHER, FLAT
-
205132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
217061042 BEARING SPHERICAL, PLASTICBEARING SPHERICAL, PLASTIC
-
227710437 RING, RETAININGRING, RETAINING
-
237512099 SCREWSCREW
-
247061057 ROD END (RIGHT)ROD END (RIGHT)
-
253573909 BUSHING FLANGEBUSHING FLANGE
-
267080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
275433814 BUSHING, TORSION BAR 9/16"BUSHING, TORSION BAR 9/16"
-
287621452 RIVETRIVET
-
295244557-067 BAR, TORSION (9/16, 42.5") (BLACK)BAR, TORSION (9/16, 42.5") (BLACK)
-
305434371 SLIDE TORSION BAR ANTIRATTLESLIDE TORSION BAR ANTIRATTLE
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING, FLANGEDBUSHING, FLANGED
-
336230225-067 SHAFT SPINDLE, W/STEERING STOP (BLACK)SHAFT SPINDLE, W/STEERING STOP (BLACK)
-
347080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367061060 ROD END, RADIUSROD END, RADIUS
-
377542711 NUT JAMNUT JAM
-
381820677-385 WELD RADIUS ROD (LOWER/CLOUD SILVER)WELD RADIUS ROD (LOWER/CLOUD SILVER)
-
397547065 NUT NYLOK, YNUT NYLOK, Y
-
407061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
415132780 BUSHING SHOULDERBUSHING SHOULDER
-
427512684 BOLTBOLT
