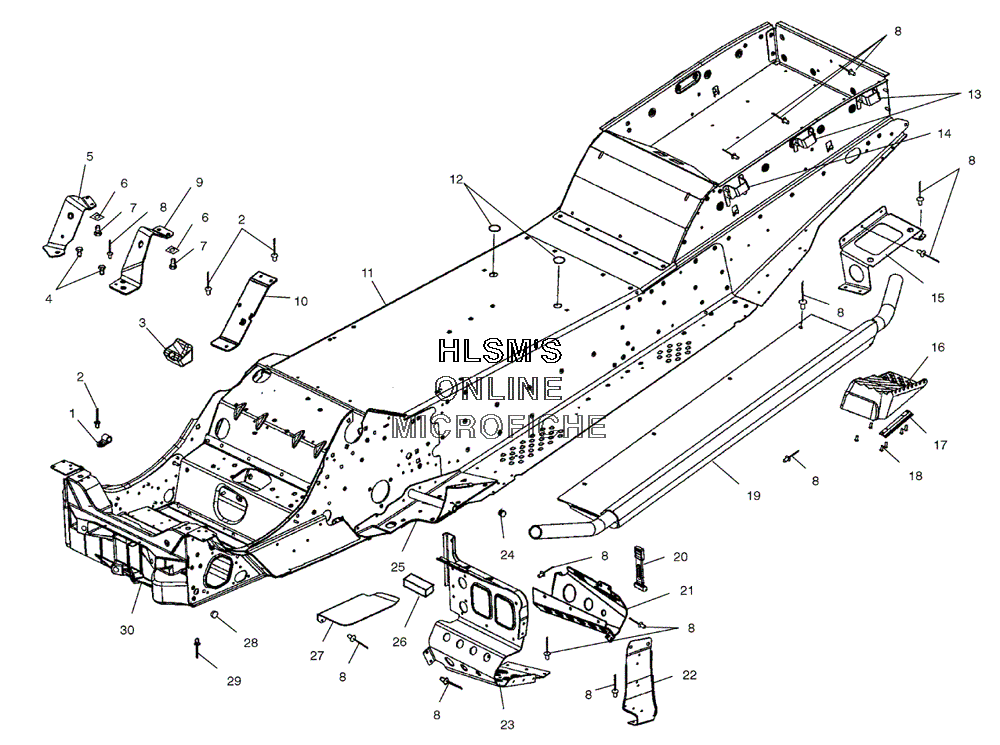

FRAME - CHASSIS для Polaris FRONTIER TOURING (S04NT7DS) - 2004 года выпуска

№

Артикул

Название
1

7080693 CLAMP, HOSE NYLON

CLAMP, HOSE NYLON

670 ₽
2

7621432 RIVET

RIVET

110 ₽
3

5412224 TORQUE STOP

TORQUE STOP

0 ₽
4

7517854 SCREW

SCREW

830 ₽
5

1013542 WELD ENGINE MOUNT (LEFT/REAR)

WELD ENGINE MOUNT (LEFT/REAR)

8 530 ₽
6

7670021 NUT, SPEED

NUT, SPEED

460 ₽
7

7515203 BOLT

BOLT

630 ₽
8

7661637 RIVET, INTERLOCK, Z

RIVET, INTERLOCK, Z

150 ₽
9

1013543 WELD ENGINE MOUNT (RIGHT/REAR)

WELD ENGINE MOUNT (RIGHT/REAR)

8 530 ₽
10

1013786 BRACKET, COIL W/NUTS ASSY

BRACKET, COIL W/NUTS ASSY

10 400 ₽
11

1014455-309 CHASSIS, NATURAL ASSY

CHASSIS, NATURAL ASSY

0 ₽
12

7080592 CAPLUG (3/4")

CAPLUG (3/4")

460 ₽
13

5246278-067 HOOK CARGO (BLACK)

HOOK CARGO (BLACK)

670 ₽
14

5246439-067 HOOK CARGO (BLACK/FRONT)

HOOK CARGO (BLACK/FRONT)

670 ₽
15

5246275-067 BRACKET ACC, ATTACH (LOWER/LEFT/BLACK)

BRACKET ACC, ATTACH (LOWER/LEFT/BLACK)

5 410 ₽
15

5246276-067 BRACKET ACC, ATTACH (LOWER/RIGHT/BLACK)

BRACKET ACC, ATTACH (LOWER/RIGHT/BLACK)

5 200 ₽
16

1013857 FOOTREST, PASSENGER ASSY (LEFT/INCL.. 17, 18)

FOOTREST, PASSENGER ASSY (LEFT/INCL.. 17, 18)

10 400 ₽
16

1013858 FOOTREST, PASSENGER ASSY(RIGHT/INCL.. 17, 18)

FOOTREST, PASSENGER ASSY(RIGHT/INCL.. 17, 18)

10 400 ₽
17

5246435 N/A, USE COMPONENTS

N/A, USE COMPONENTS

0 ₽
18

7512076 SCREW

SCREW

130 ₽
19

1240133 WELD RUNNING BOARD COOLER (LEFT)

WELD RUNNING BOARD COOLER (LEFT)

28 080 ₽
19

1240134 WELD RUNNING BOARD COOLER (RIGHT)

WELD RUNNING BOARD COOLER (RIGHT)

56 160 ₽
20

5433150 STRAP

STRAP

4 160 ₽
21

5245457 MOUNT CONSOLE, TOE CLIP (LEFT)

MOUNT CONSOLE, TOE CLIP (LEFT)

6 870 ₽
21

5245458 MOUNT CONSOLE, TOE CLIP (RIGHT)

MOUNT CONSOLE, TOE CLIP (RIGHT)

6 870 ₽
22

5246310 SUPPORT FOOTREST (LEFT)

SUPPORT FOOTREST (LEFT)

4 990 ₽
22

5246311 SUPPORT FOOTREST (RIGHT)

SUPPORT FOOTREST (RIGHT)

4 990 ₽
23

5246914 FOOTREST (TOOL CLIP) (LEFT)

FOOTREST (TOOL CLIP) (LEFT)

15 600 ₽
23

5247205 FOOTREST (RIGHT)

FOOTREST (RIGHT)

18 720 ₽
24

7081085 PLUG BARBED (.625)

PLUG BARBED (.625)

1 250 ₽
25

2202059 MOUNT, TRAILING ARM KIT (LEFT)

MOUNT, TRAILING ARM KIT (LEFT)

37 440 ₽
25

2202598 MOUNT, TRAILING ARM KIT (RIGHT)

MOUNT, TRAILING ARM KIT (RIGHT)

20 800 ₽
26

5812437 FOAM TOOL W/ADHESIVE

FOAM TOOL W/ADHESIVE

1 250 ₽
27

5246791 GUARD ADAPTOR DRIVE

GUARD ADAPTOR DRIVE

11 440 ₽
28

7080416 PLUG, HOLE

PLUG, HOLE

750 ₽
29

7661130 RIVET

RIVET

250 ₽
30

5132292 BULKHEAD MACH (FRONT)

BULKHEAD MACH (FRONT)

29 120 ₽
