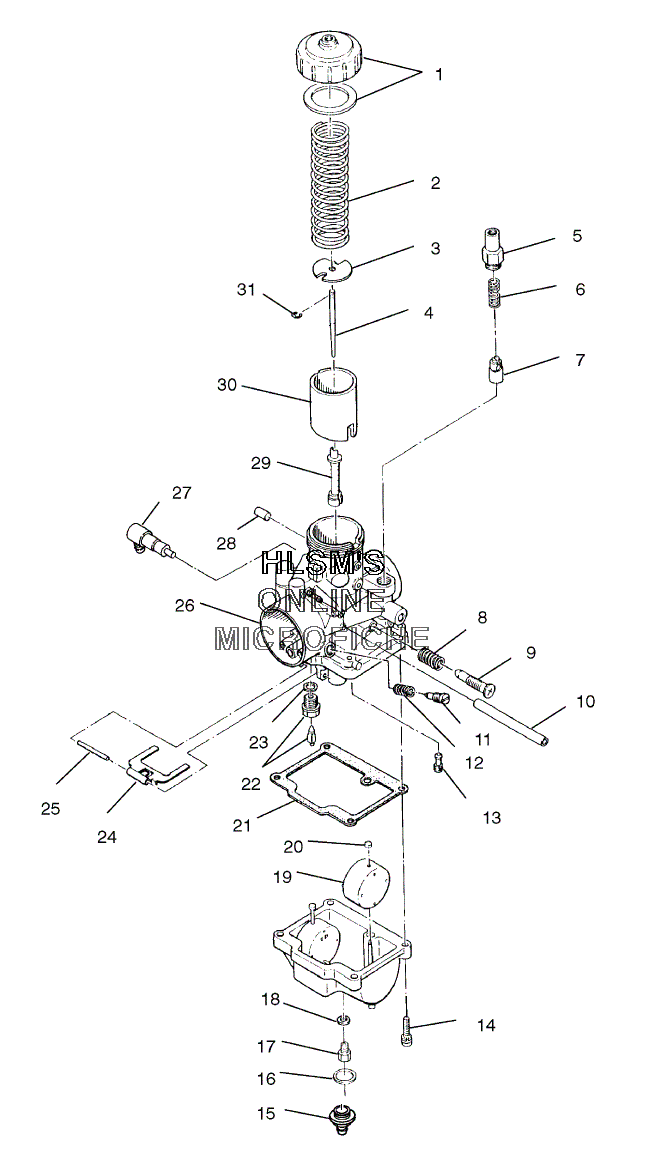

CARBURETOR ASSEMBLY для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска
-
№АртикулНазвание
-
13130877 TOP MIXING CHAMBER ASSYTOP MIXING CHAMBER ASSY
-
23130439 SPRING THROTTLESPRING THROTTLE
-
33130879 PLATE THROTTLEPLATE THROTTLE
-
43131416 NEEDLE JETNEEDLE JET
-
53130199 HOLDER GUIDEHOLDER GUIDE
-
63130884 SPRING PLUNGERSPRING PLUNGER
-
73130328 PLUNGER ASSYPLUNGER ASSY
-
83130010 SPRING THROTTLE ADJUSTERSPRING THROTTLE ADJUSTER
-
93130437 SCREW THROTTLE STOPSCREW THROTTLE STOP
-
103131288 HOSEHOSE
-
113130011 SCREW AIRSCREW AIR
-
123130012 SPRING AIR ADJUSTSPRING AIR ADJUST
-
133130067 JET PILOTJET PILOT
-
143130025 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
155020476 FITTING SEDIMENTFITTING SEDIMENT
-
163130239 O-RINGO-RING
-
173130130 JET MAIN HEXAGON HEAD (MAG)JET MAIN HEXAGON HEAD (MAG)
-
173130131 JET MAIN HEXAGON HEAD (PTO)JET MAIN HEXAGON HEAD (PTO)
-
183130014 WASHERWASHER
-
193130430 FLOAT ASSYFLOAT ASSY
-
203130237 CAPCAP
-
213130020 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
223131146 VALVE NEEDLE (1.5)VALVE NEEDLE (1.5)
-
233130017 PACKING NEEDLE VALVEPACKING NEEDLE VALVE
-
243130018 ARM FLOATARM FLOAT
-
253130361 PIN FLOATPIN FLOAT
-
263131520 CARBURETOR ASSY (INCL. ALL) (MAG)CARBURETOR ASSY (INCL. ALL) (MAG)
-
263131521 CARBURETOR ASSY (INCL. ALL) (PTO)CARBURETOR ASSY (INCL. ALL) (PTO)
-
273083337 VALVE CHECK ASSYVALVE CHECK ASSY
-
283130479 CAPCAP
-
293130894 JET NEEDLE Q-2JET NEEDLE Q-2
-
303130372 VALVE THROTTLE (3.0)VALVE THROTTLE (3.0)
-
313130508 E-RINGE-RING
