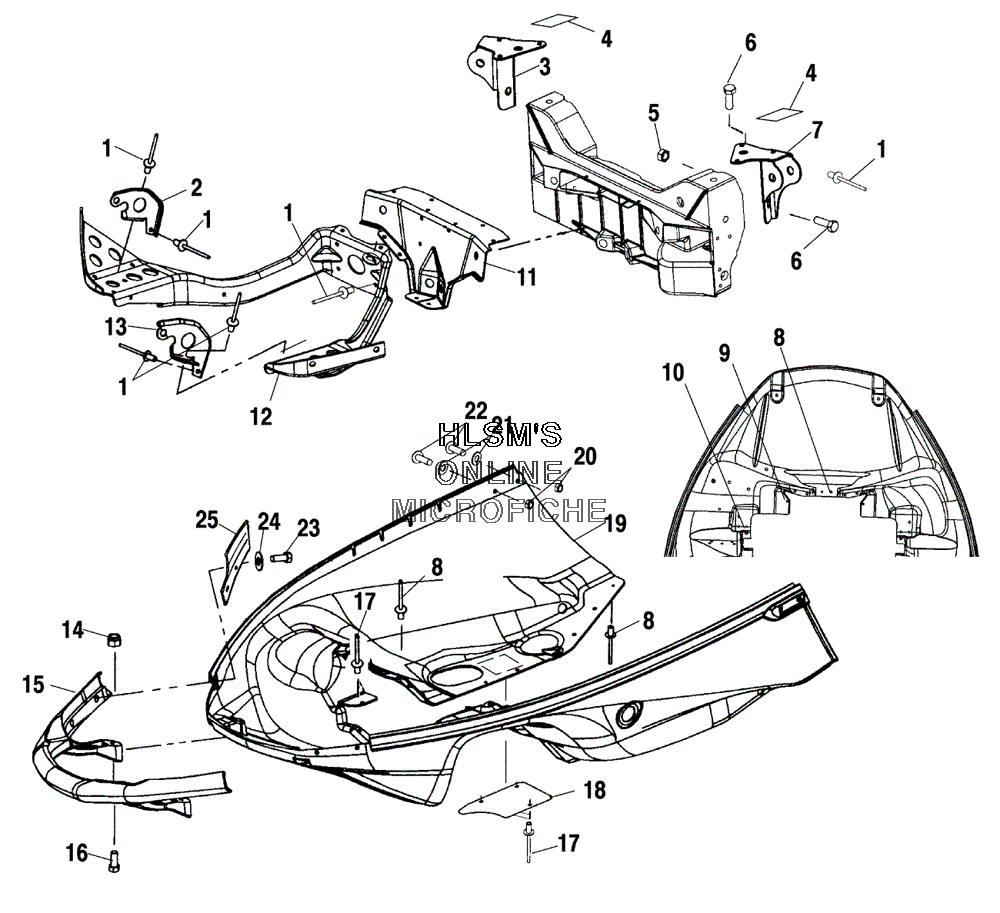

NOSEPAN ASSEMBLY #2 для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17661637 RIVET INTERLOCK ZRIVET INTERLOCK Z
-
25243992-067 HINGE PIVOT (LOWER/BLACK/RIGHT)HINGE PIVOT (LOWER/BLACK/RIGHT)
-
35243978 MOUNT SHOCK BLACKHEAD (UPPER/RIGHT)MOUNT SHOCK BLACKHEAD (UPPER/RIGHT)
-
45810947 FOAM SEALFOAM SEAL
-
57547180 NUT FLANGED NYLON ZNUT FLANGED NYLON Z
-
67517935 SCREW HEXAGON SOCSCREW HEXAGON SOC
-
75243977 MOUNT SHOCK BLACKHEAD (UPPER/LEFT)MOUNT SHOCK BLACKHEAD (UPPER/LEFT)
-
87621467 RIVET BLINDRIVET BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET RAD ROD SUPPORT (BLACK)BRACKET RAD ROD SUPPORT (BLACK)
-
125244050 BRACE PAN (LOWER)BRACE PAN (LOWER)
-
135243991-067 HINGE PIVOT (LOWER/LEFT/BLACK)HINGE PIVOT (LOWER/LEFT/BLACK)
-
147542153 NUT NYLOK FLANGEDNUT NYLOK FLANGED
-
155433518-070 BUMPER ASSY (FRONT/BLACK)BUMPER ASSY (FRONT/BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD HEAT EXTENDEDSHIELD HEAT EXTENDED
-
195434343-397 NOSEPAN GAS ASSIST (SILVER)NOSEPAN GAS ASSIST (SILVER)
-
207542122 NUT NYLOKNUT NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREWSCREW
-
247552801 WASHER SPRING LOCKWASHER SPRING LOCK
-
255244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
255244889 GUIDE HOOD (RIGHT)GUIDE HOOD (RIGHT)
