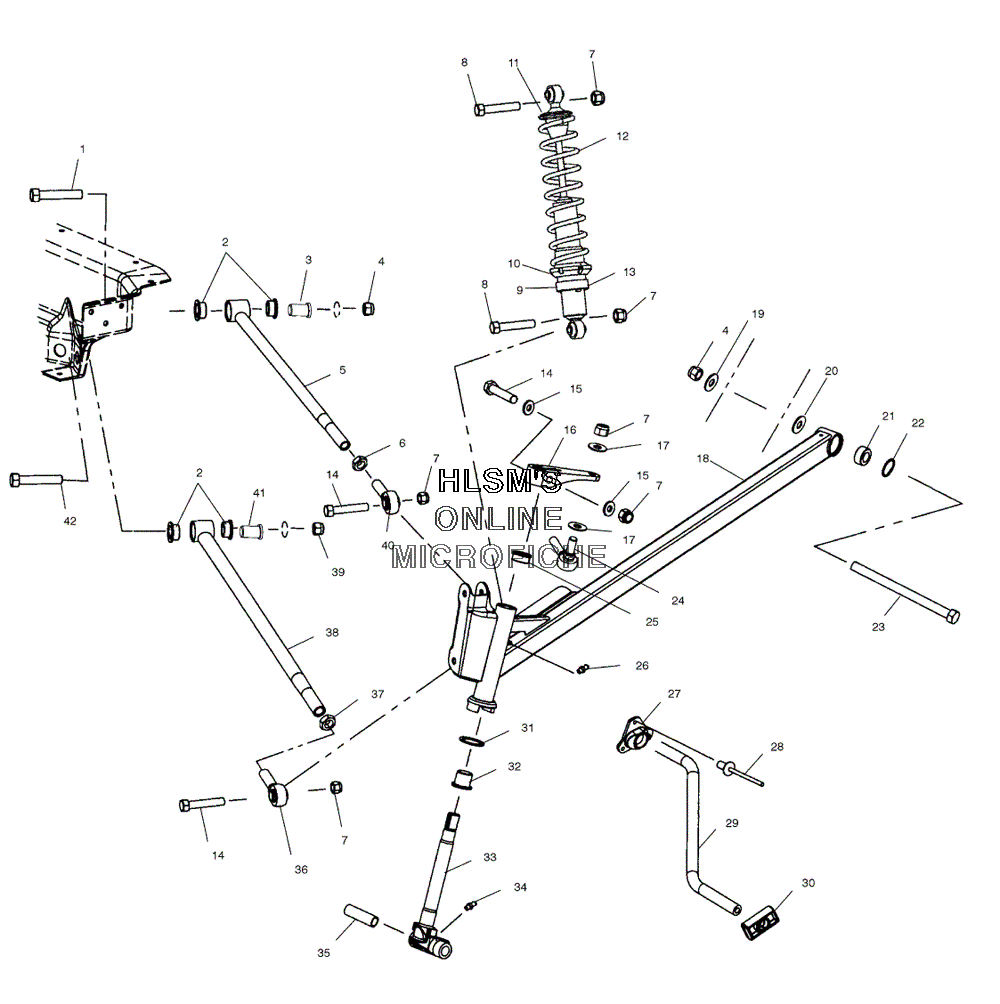

SUSPENSION - FRONT для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
25434036 BUSHING PIVOT (INNER)BUSHING PIVOT (INNER)
-
35132779 BUSHING SHOULDERBUSHING SHOULDER
-
47547066 NUT 7/16-20 NYLOK YNUT 7/16-20 NYLOK Y
-
51820679-385 WELD RADIUS ROD (UPPER/COULD SILVER)WELD RADIUS ROD (UPPER/COULD SILVER)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT NYLOKNUT NYLOK
-
87515433 SCREWSCREW
-
97041918 SHK GASSHK GAS
-
105431734 RING SPRING PRELOAD ADJUSTERRING SPRING PRELOAD ADJUSTER
-
115020618 RETAINER SPRING SLOTTEDRETAINER SPRING SLOTTED
-
127042074-312 SPRING, COMPRESSIONSPRING, COMPRESSION
-
131500063 RETAINER SPRING BODY THREADEDRETAINER SPRING BODY THREADED
-
147517583 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
157555832 WASHERWASHER
-
165132728 ARM STEERING MACHINEDARM STEERING MACHINED
-
177555797 WASHER FLATWASHER FLAT
-
181821165-385 TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 21, 22)
-
181821166-385 TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM SERVICE ASSY (CLOUD SILVER) (INCL. 21, 22)
-
197555820 WASHER FLATWASHER FLAT
-
205132364 CUP TRAILING ARM MOUNTCUP TRAILING ARM MOUNT
-
217061042 BEARING SPHERICAL 7/16 PLASTICBEARING SPHERICAL 7/16 PLASTIC
-
227710437 RING RETAININGRING RETAINING
-
237512099 SCREWSCREW
-
247061057 ROD END 3/8 PL (RIGHT)ROD END 3/8 PL (RIGHT)
-
253573909 BUSHING FLANGEBUSHING FLANGE
-
267080433 FITTING LUBRICATION THREADEDFITTING LUBRICATION THREADED
-
275433814 BUSHING TORSION BAR (9/16")BUSHING TORSION BAR (9/16")
-
287621452 RIVETRIVET
-
295244557-067 BAR TORSION (9/16) (BLACK)BAR TORSION (9/16) (BLACK)
-
305434371 SLIDE TORSION BAR 9/16 ANTIRATTLESLIDE TORSION BAR 9/16 ANTIRATTLE
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING FLANGEDBUSHING FLANGED
-
336230225-067 SHAFT SPINDLE WITH STEER STOP (BLACK)SHAFT SPINDLE WITH STEER STOP (BLACK)
-
347080306 FITTING LUBE WITH BALL CHECKFITTING LUBE WITH BALL CHECK
-
355010158 BUSHING PIVOTBUSHING PIVOT
-
367061060 ROD END RADIUS (1/2)ROD END RADIUS (1/2)
-
377542711 NUT JAMNUT JAM
-
381820677-385 WELD RADIUS ROD (LOWER/CLOUD SILVER)WELD RADIUS ROD (LOWER/CLOUD SILVER)
-
397547065 NUT NYLOK YNUT NYLOK Y
-
407061061 ROD END RADIUS (7/16)ROD END RADIUS (7/16)
-
415132780 BUSHING SHOULDERBUSHING SHOULDER
-
427512684 BOLTBOLT
