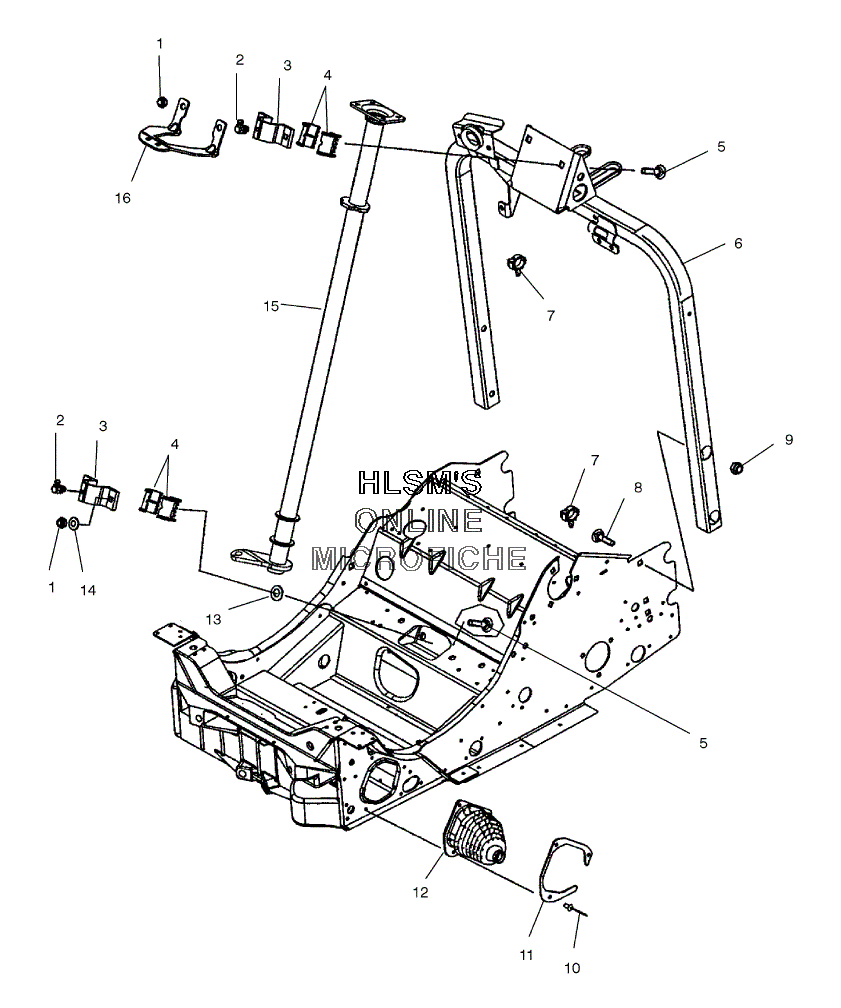

STEERING ASSEMBLY #2 для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17542324 NUT NYLOKNUT NYLOK
-
27080510 FITTING ZERK 90 DEGREEFITTING ZERK 90 DEGREE
-
35133648 BRACKET STEERING POST MODULEBRACKET STEERING POST MODULE
-
45432785 BUSHINGBUSHING
-
57517579 BOLT CARRIERBOLT CARRIER
-
61013804-067 WELD HOOP STEERING (BLACK)WELD HOOP STEERING (BLACK)
-
74020139 CLIP ROSEBUDCLIP ROSEBUD
-
87512377 BOLT CARRIAGEBOLT CARRIAGE
-
97542343 NUT FLANGENUT FLANGE
-
107621433 RIVETRIVET
-
115244470 PLATE TIE ROD BOOTPLATE TIE ROD BOOT
-
125433532 BOOT TIE ROD (LEFT)BOOT TIE ROD (LEFT)
-
125433533 BOOT TIE ROD (RIGHT)BOOT TIE ROD (RIGHT)
-
137547030 PALNUTPALNUT
-
147558402 WASHER FLATWASHER FLAT
-
151820965-067 WELD POST STEERING (BLACK)WELD POST STEERING (BLACK)
-
165245354 BRACKET CONSOLE FRONT NECK (STANDARD)BRACKET CONSOLE FRONT NECK (STANDARD)
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR ASSEMBLY
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY #1
- • STEERING ASSEMBLY #2
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WINDSHIELD/GUAGES/HOOD RETAINER
