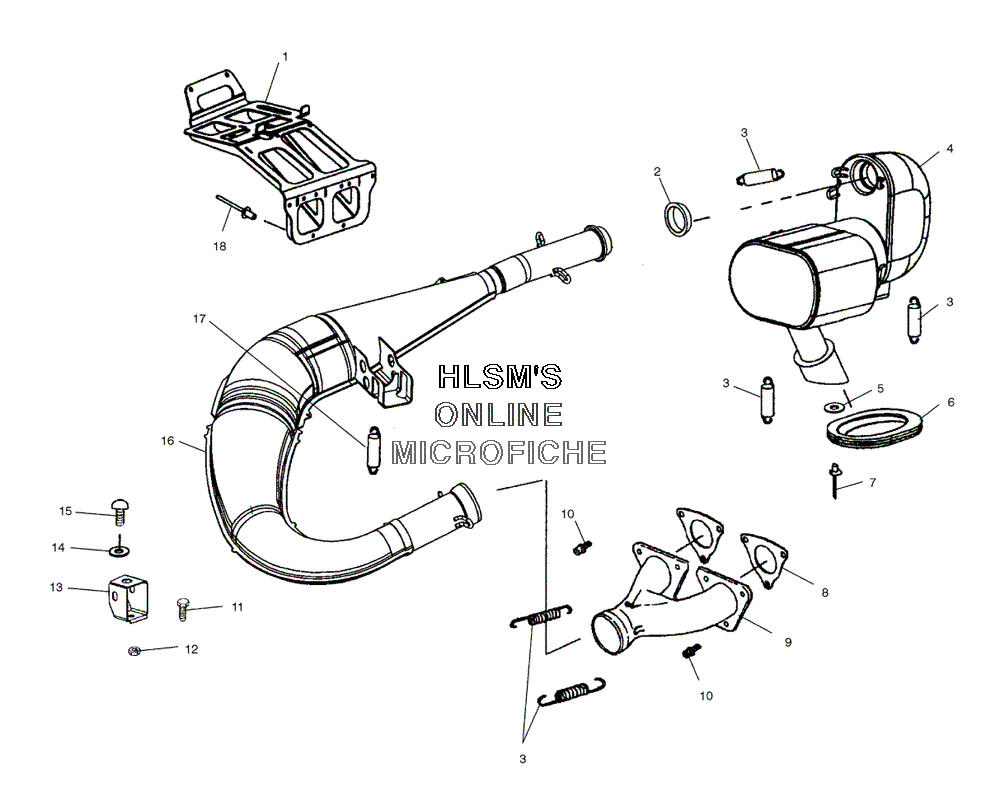

EXHAUST SYSTEM для Polaris TRAIL TOURING (S04NT5BS) - 2004 года выпуска
-
№АртикулНазвание
-
11261296-029 WELD BRACKET CHASSIS/RESONATOR (BLACK)WELD BRACKET CHASSIS/RESONATOR (BLACK)
-
23610047 SEAL EXHAUST SOCKETSEAL EXHAUST SOCKET
-
37041687 SPRINGSPRING
-
41261130-029 WELD RESONATOR (BLACK)WELD RESONATOR (BLACK)
-
57555904 WASHERWASHER
-
65411684 BOOT EXHAUST OUTLETBOOT EXHAUST OUTLET
-
77621467 RIVET BLINDRIVET BLIND
-
83085714 GASKET EXHAUSTGASKET EXHAUST
-
91260981-029 MANIFOLD HI-TEM (BLACK)MANIFOLD HI-TEM (BLACK)
-
107517555 SCREW HEXAGON SOCSCREW HEXAGON SOC
-
117517935 SCREW HEXAGON SOCSCREW HEXAGON SOC
-
127547180 NUT FLANGED NYLON ZNUT FLANGED NYLON Z
-
135245498 BRACKET CHASSIS/PIPEBRACKET CHASSIS/PIPE
-
147556004 WASHERWASHER
-
155411576 DAMPENER VIBRATION WITH RIBSDAMPENER VIBRATION WITH RIBS
-
161261228-029 WELD TUNED PIPE (BLACK)WELD TUNED PIPE (BLACK)
-
177042029 SPRINGSPRING
-
187661637 RIVET INTERLOCK ZRIVET INTERLOCK Z
