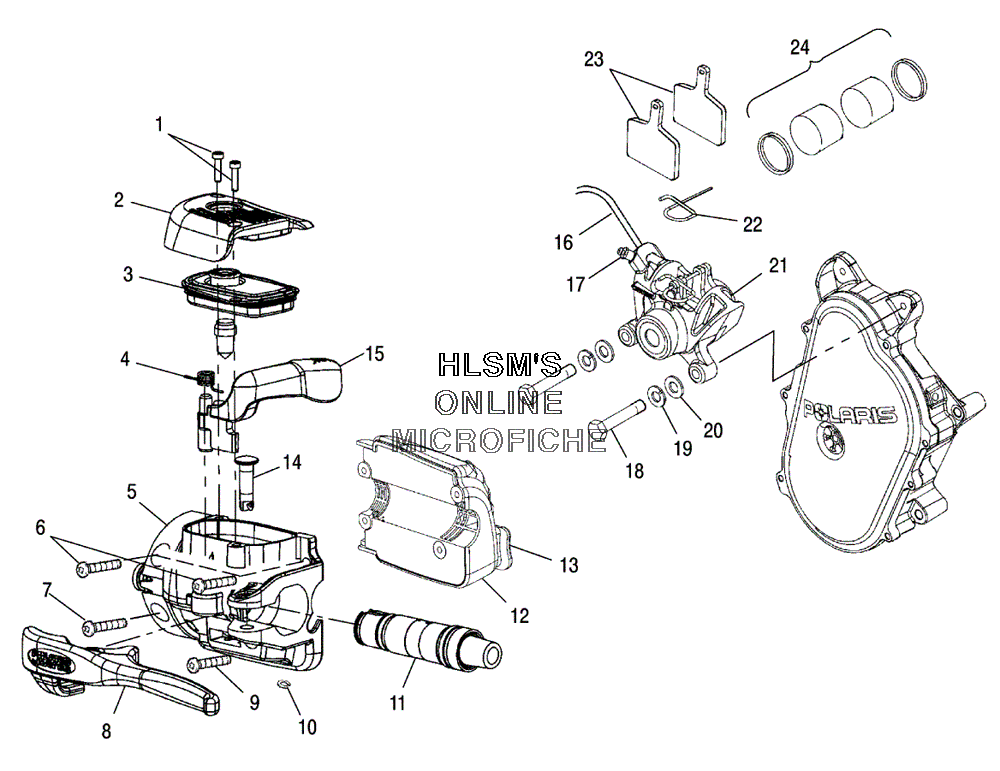

BRAKE ASSEMBLY для Polaris 550 CLASSIC (S05ND5BS) - 2005 года выпуска

№

Артикул

Название
1

2201254 COVER SCREW

COVER SCREW

3 120 ₽
2

2201255 COVER ASSEMBLY KIT (INCL. 1, 3)

COVER ASSEMBLY KIT (INCL. 1, 3)

17 680 ₽
4

2201250 PARK LEVER SPRING KIT

PARK LEVER SPRING KIT

3 950 ₽
5

2202146 MASTER CYLINDER W/PIPE THROTTLE ASSY KIT (INCL. 1-11)

MASTER CYLINDER W/PIPE THROTTLE ASSY KIT (INCL. 1-11)

58 240 ₽
5

4010157 SWITCH, BRAKE LIGHT

SWITCH, BRAKE LIGHT

17 680 ₽
6

7517441 SCREW (.75)

SCREW (.75)

630 ₽
7

7512078 SCREW (1.12)

SCREW (1.12)

150 ₽
8

2201943 LEVER KIT 3 NOTCH/PIN/RING

LEVER KIT 3 NOTCH/PIN/RING

10 400 ₽
9

7517566 SCREW (1.50)

SCREW (1.50)

630 ₽
10

2201945 SNAP RING KIT

SNAP RING KIT

1 460 ₽
11

2201944 CARTRIDGE SUB ASSY KIT (5/8")

CARTRIDGE SUB ASSY KIT (5/8")

0 ₽
12

2010206 CONTROL ASSY, E/R BASIC (LEFT)

CONTROL ASSY, E/R BASIC (LEFT)

15 600 ₽
13

5433291 BUTTON SWITCH HI/LO CONTROL (LEFT)

BUTTON SWITCH HI/LO CONTROL (LEFT)

3 750 ₽
14

2201946 PIVOT PIN KIT ALUM W/SNAP RING

PIVOT PIN KIT ALUM W/SNAP RING

3 330 ₽
15

2201251 PARK LEVER AND SPRING KIT (INCL. 4)

PARK LEVER AND SPRING KIT (INCL. 4)

8 320 ₽
16

1910607 LINE BRAKE BRAIDED

LINE BRAKE BRAIDED

0 ₽
17

2202205 BLEEDER FITTING KIT

BLEEDER FITTING KIT

6 240 ₽
18

7515534 SCREW

SCREW

630 ₽
19

7552603 WASHER, SPRING LOCK

WASHER, SPRING LOCK

110 ₽
20

7556160 WASHER

WASHER

630 ₽
21

2202198 BRAKE CALIPER ASSY KIT AIR (STD) (INCL. 17, 22-24)

BRAKE CALIPER ASSY KIT AIR (STD) (INCL. 17, 22-24)

0 ₽
22

2202206 PIN RETAINING KIT

PIN RETAINING KIT

4 370 ₽
23

2202202 BRAKE PAD KIT TYPE 81

BRAKE PAD KIT TYPE 81

22 880 ₽
24

2202207 PISTON/SEAL KIT

PISTON/SEAL KIT

19 760 ₽
24

2202204 SEAL KIT

SEAL KIT

6 870 ₽
