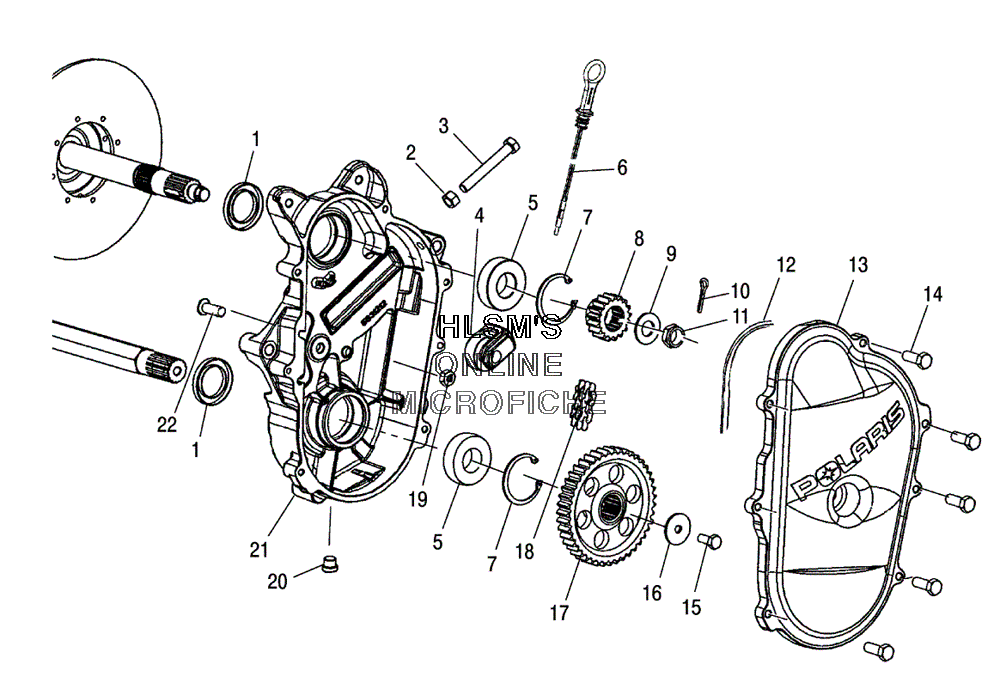

CHAINCASE ASSEMBLY для Polaris 550 CLASSIC (S05ND5BS) - 2005 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 TIGHTENER ASSY, CHAINTIGHTENER ASSY, CHAIN
-
53514309 BEARING, BALLBEARING, BALL
-
61332143 DIPSTICK ASSY (INCL. O-RING)DIPSTICK ASSY (INCL. O-RING)
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221095 SPROCKET (19T, 3/4W, 15 SPLINE, HYVO, PM)SPROCKET (19T, 3/4W, 15 SPLINE, HYVO, PM)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUT 5/8-18 THIN, NYL INSERT-YNUT 5/8-18 THIN, NYL INSERT-Y
-
125812574 GASKET CHAINCASE COVER (7.92)GASKET CHAINCASE COVER (7.92)
-
135631354 COVER, CHAINCASE (7.92 CD)COVER, CHAINCASE (7.92 CD)
-
147512242 SCREWSCREW
-
157517979 SCREW, HEXAGON HEAD NYLONSCREW, HEXAGON HEAD NYLON
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222108 SPROCKET (39T/15T, 3/4W HYVO PM)SPROCKET (39T/15T, 3/4W HYVO PM)
-
183221110 CHAIN, HYVO (72P 3/4W)CHAIN, HYVO (72P 3/4W)
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASE (7.92 CD)CHAINCASE (7.92 CD)
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
