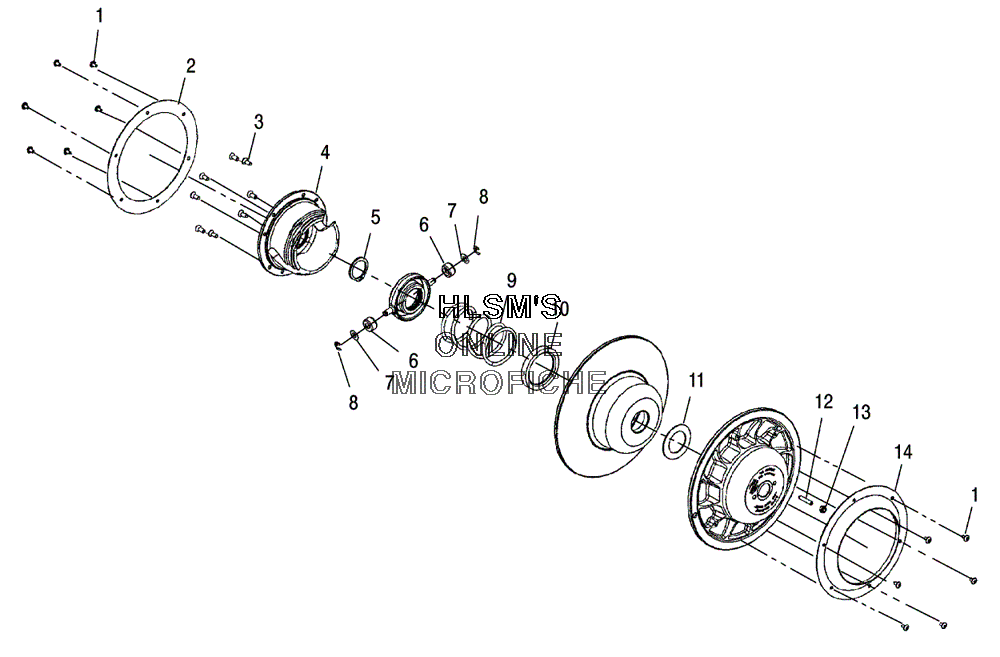

CLUTCH - DRIVEN для Polaris 550 CLASSIC (S05ND5BS) - 2005 года выпуска
-
№АртикулНазвание
-
17518023 SCREW TEAM#105099SCREW TEAM#105099
-
25246216 PLATE WINDAGE MOV, TEAM#430085PLATE WINDAGE MOV, TEAM#430085
-
33233996 SCREW CAP TORXSCREW CAP TORX
-
45133887 RAMP DRIVENRAMP DRIVEN
-
57710522 RETAINER RING-EXT 1.500RETAINER RING-EXT 1.500
-
65434534 ROLLERROLLER
-
77556226 WASHER THRUSTWASHER THRUST
-
87710523 RETAINER E-RING E T.375RETAINER E-RING E T.375
-
97043057 SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)
-
107556227 WASHER THRUSTWASHER THRUST
-
113234033 SPACERSPACER
-
127518024 SCREW, SET HEXAGON SOCKETSCREW, SET HEXAGON SOCKET
-
137542103 NUT, FLEXLOCNUT, FLEXLOC
-
145246217 PLATE WINDAGE STAT TEAM #430086PLATE WINDAGE STAT TEAM #430086
-
141322433 DRIVEN CLUTCH, ASSY BASIC #216HP (INCL. 3, 5-8, 11-13)DRIVEN CLUTCH, ASSY BASIC #216HP (INCL. 3, 5-8, 11-13)
