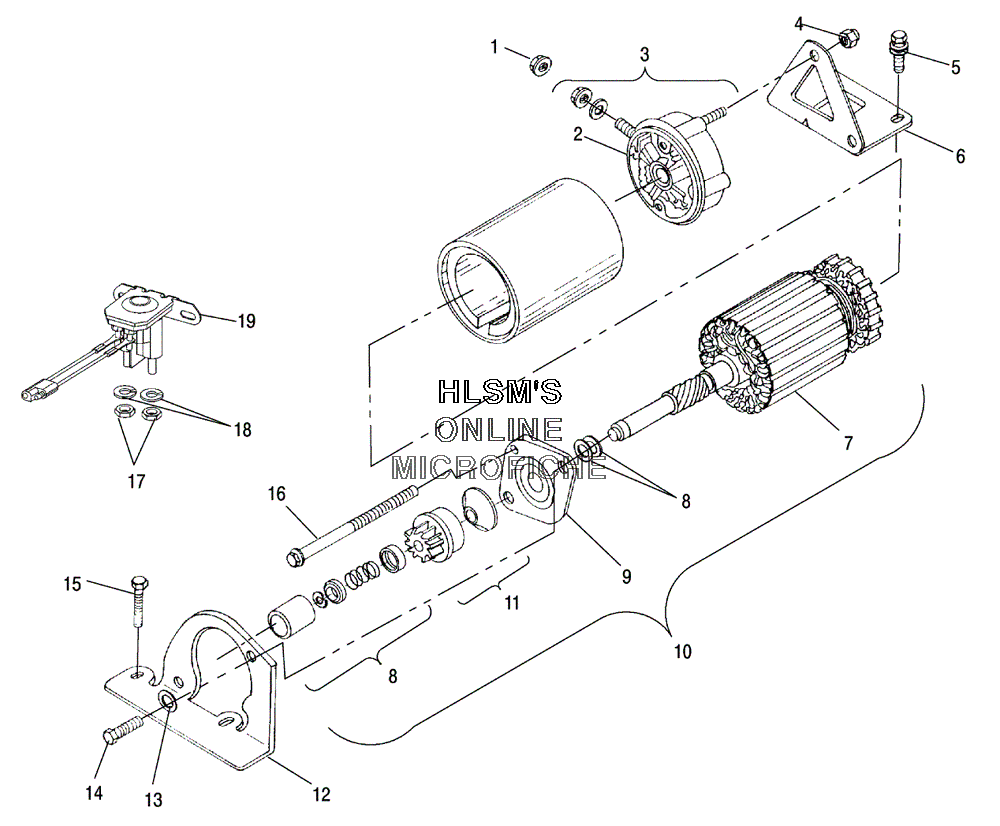

STARTING MOTOR для Polaris 550 CLASSIC (S05ND5BS) - 2005 года выпуска
-
№АртикулНазвание
-
17542103 NUT, FLEXLOCNUT, FLEXLOC
-
22200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
32200758 COMMUTATOR CAP ASSY KIT (INCL. 2)COMMUTATOR CAP ASSY KIT (INCL. 2)
-
47542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
57516815 SCREWSCREW
-
65240956 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
72200756 ARMATURE ASSY KITARMATURE ASSY KIT
-
82200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
92200757 DRIVECAP ASSY KITDRIVECAP ASSY KIT
-
104170006 MOTOR, STARTER DOMESTICMOTOR, STARTER DOMESTIC
-
112200754 DRIVE ASSY KITDRIVE ASSY KIT
-
125241271 BRACKET, STARTER (FRONT)BRACKET, STARTER (FRONT)
-
137552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147512492 SCREWSCREW
-
157516730 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
162200753 SCREW KITSCREW KIT
-
177542105 NUT HEXNUT HEX
-
187552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
194010930 SWITCH MAGNETIC (INCL. 17, 18)SWITCH MAGNETIC (INCL. 17, 18)
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL PUMP
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- • STARTING MOTOR
- STEERING ASSEMBLY #1
- STEERING ASSEMBLY #2
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- WINDSHIELD/GUAGES/HOOD RETAINER
