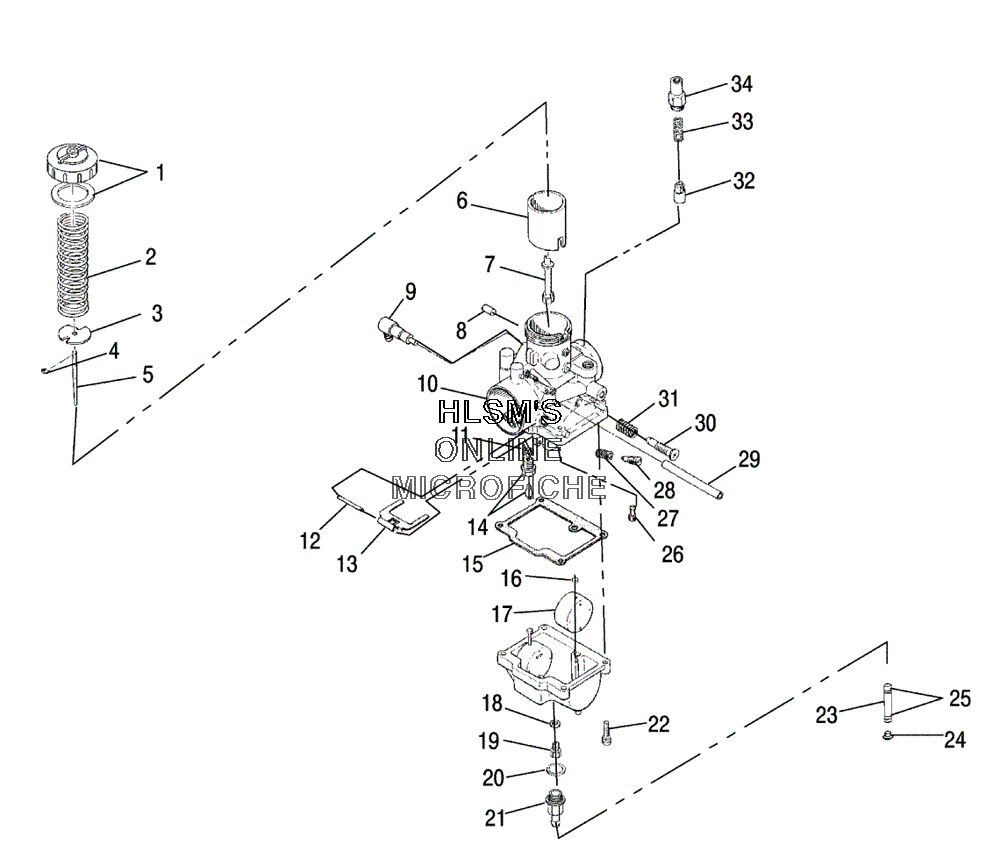

CARBURETOR ASSEMBLY для Polaris 550 CLASSIC (S05ND5BS) - 2005 года выпуска
-
№АртикулНазвание
-
13130184 MIXING CHAMBER, TOP ASSYMIXING CHAMBER, TOP ASSY
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATE, THROTTLEPLATE, THROTTLE
-
43130508 E-RINGE-RING
-
53131416 NEEDLE-JET, 6BGY33NEEDLE-JET, 6BGY33
-
63130372 VALVE, THROTTLEVALVE, THROTTLE
-
73130894 JET, NEEDLE Q-2JET, NEEDLE Q-2
-
83130479 CAPCAP
-
93086785 VALVE ASSY, CHECKVALVE ASSY, CHECK
-
103131520 CARBURETOR ASSY (MAGNETO) (INCL. 1-22, 21-4)CARBURETOR ASSY (MAGNETO) (INCL. 1-22, 21-4)
-
103131521 CARBURETOR ASSY (PTO) (INCL. 1-22, 21-4)CARBURETOR ASSY (PTO) (INCL. 1-22, 21-4)
-
113130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
123130361 PIN, FLOATPIN, FLOAT
-
133130018 ARM, FLOATARM, FLOAT
-
143131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
153130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
163130237 CAPCAP
-
173130430 FLOAT ASSYFLOAT ASSY
-
183130014 WASHERWASHER
-
193130130 JET, MAIN HEXAGON HEAD #270 (MAGNETO)JET, MAIN HEXAGON HEAD #270 (MAGNETO)
-
193130131 JET, MAIN HEXAGON HEAD #280 (PTO)JET, MAIN HEXAGON HEAD #280 (PTO)
-
203130239 O-RINGO-RING
-
213130573 NIPPLENIPPLE
-
223130025 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
238350017-600 FUEL LINE, EHTER (RED) (5/16")FUEL LINE, EHTER (RED) (5/16")
-
245431893 PLUG, TRAPPLUG, TRAP
-
257080003 CLAMP, HOSECLAMP, HOSE
-
263130067 JET, PILOT #40JET, PILOT #40
-
273130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
283130011 SCREW, AIRSCREW, AIR
-
293131288 HOSEHOSE
-
303130437 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
313130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
323130328 PLUNGER ASSYPLUNGER ASSY
-
333130006 SPRING, PLUNGERSPRING, PLUNGER
-
343130199 HOLDER, GUIDEHOLDER, GUIDE
