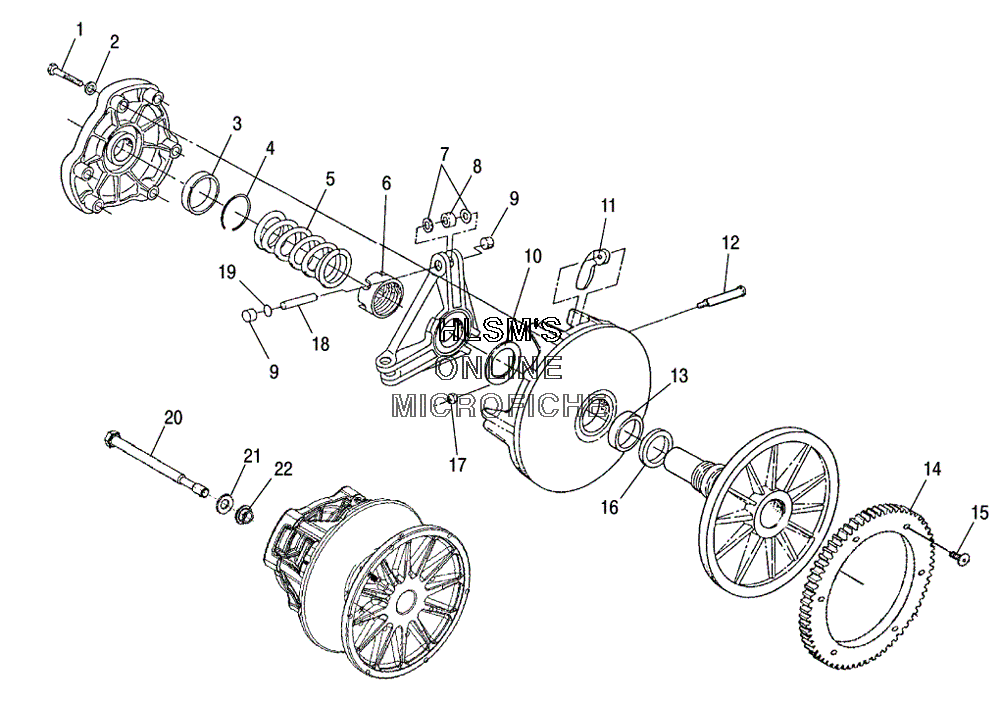

CLUTCH - DRIVE для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER (.050)SPACER (.050)
-
105210753 SPACER (.032)SPACER (.032)
-
105242981 SPACER (.025)SPACER (.025)
-
105210752 SPACER (.020)SPACER (.020)
-
105134018 SPACER (.130) (PM)SPACER (.130) (PM)
-
111321588 WT/BUSHING ASSY (10 58)WT/BUSHING ASSY (10 58)
-
127515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145131062 GEAR RINGGEAR RING
-
157515351 BOLTBOLT
-
165010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
177541906 NUT FLEXLOCNUT FLEXLOC
-
185133079 PIN ROLLER, 1" SBNPIN ROLLER, 1" SBN
-
192200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
207517501 SCREWSCREW
-
217556003 WASHERWASHER
-
225132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
221321932 DRIVE CLUTCH ASSY, ES BASIC 118 W/B (INCL. ALL LESS 5, 11)DRIVE CLUTCH ASSY, ES BASIC 118 W/B (INCL. ALL LESS 5, 11)
