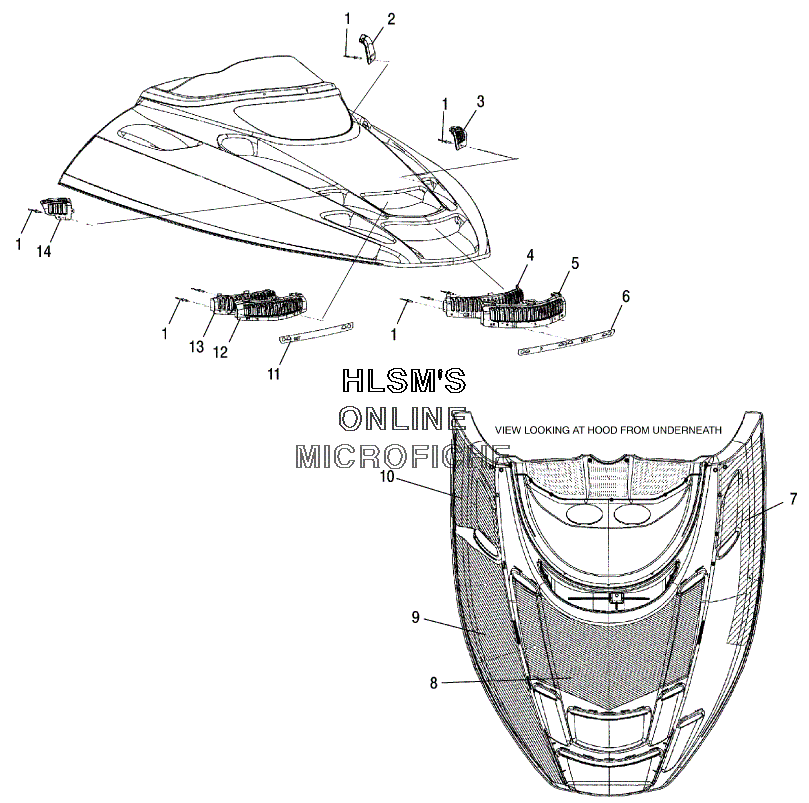

HOOD - FOAM/FOIL для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17661142 RIVETRIVET
-
25434223-070 CLOSURE HOOD (UPPER/BLACK/LEFT)CLOSURE HOOD (UPPER/BLACK/LEFT)
-
35434195-070 CLOSURE HOOD SIDE (BLACK/LEFT)CLOSURE HOOD SIDE (BLACK/LEFT)
-
45434201-070 BACKER HOOD CLOSURE (LOWER/BLACK)BACKER HOOD CLOSURE (LOWER/BLACK)
-
55434199-070 CLOSURE HOOD (LOWER/BLACK)CLOSURE HOOD (LOWER/BLACK)
-
65246029 RETAINER CLOSURE (LOWER)RETAINER CLOSURE (LOWER)
-
75812017 FOIL, TAPE (RIGHT)FOIL, TAPE (RIGHT)
-
85812007 FOAM (CENTER)FOAM (CENTER)
-
95812286 FOAM (FRONT/LEFT)FOAM (FRONT/LEFT)
-
105812270 FOAM (REAR/LEFT)FOAM (REAR/LEFT)
-
115246028 REATAINER CLOSURE (UPPER)REATAINER CLOSURE (UPPER)
-
125434198-070 CLOSURE HOOD (UPPER/BLACK)CLOSURE HOOD (UPPER/BLACK)
-
135434197-070 BACKER HOOD CLOSURE (UPPER/BLACK)BACKER HOOD CLOSURE (UPPER/BLACK)
-
145434196-070 CLOSURE HOOD, SIDE (BLACK/RIGHT)CLOSURE HOOD, SIDE (BLACK/RIGHT)
