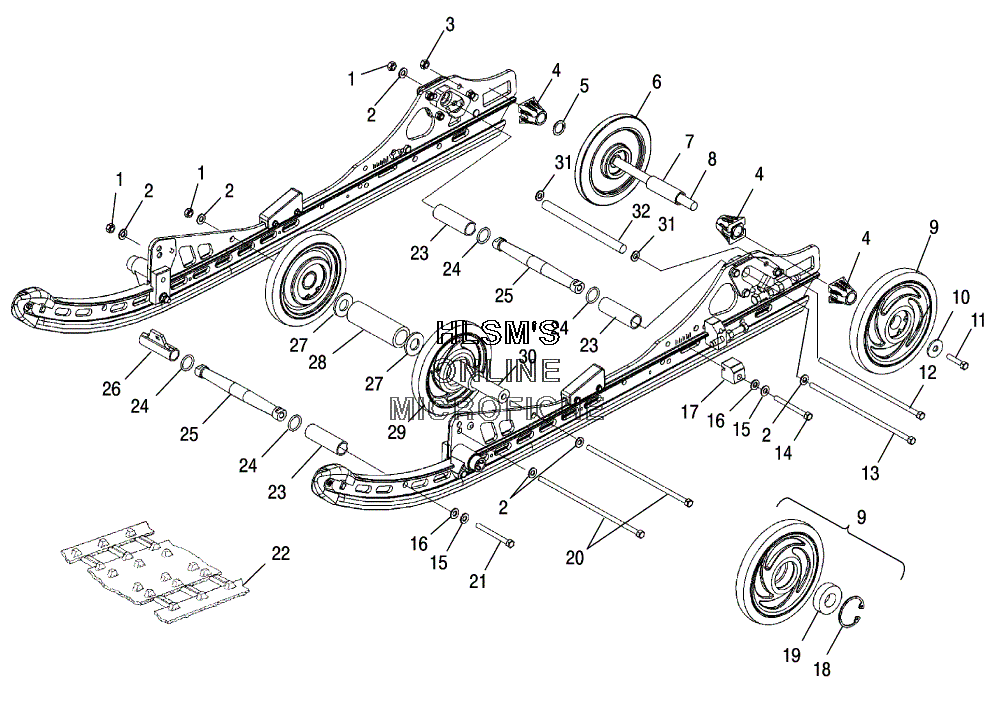

SUSPENSION - REAR (M-10) для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27555806 WASHER, FLATWASHER, FLAT
-
37547064 NUT, NYLOKNUT, NYLOK
-
45432535 SPACER, IDLERSPACER, IDLER
-
57555918 BUSHINGBUSHING
-
61590307 WHEEL ASSY, IDLER 6.0 OD PLAINWHEEL ASSY, IDLER 6.0 OD PLAIN
-
75333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
85020744 SHAFT, IDLERSHAFT, IDLER
-
91590305-244 WHEEL IDLER GEN II EDGE (M-10) (SILVER)WHEEL IDLER GEN II EDGE (M-10) (SILVER)
-
107556130 WASHERWASHER
-
117517731 BOLTBOLT
-
127517896 SCREW HEXAGON HEAD CAP-YSCREW HEXAGON HEAD CAP-Y
-
137517821 SCREW HEXAGON HEAD CAP-YSCREW HEXAGON HEAD CAP-Y
-
147517856 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
157552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167556042 WASHER, FLATWASHER, FLAT
-
175132583 BLOCK SHOCK PIVOT ADJUSTERBLOCK SHOCK PIVOT ADJUSTER
-
187710444 RING, RETAININGRING, RETAINING
-
193514384 BEARING NTNBEARING NTN
-
207517921 SCREW HEXAGON/LPSCREW HEXAGON/LP
-
217517857 SCREW HEXAGON/CAPSCREW HEXAGON/CAP
-
225411994 TRACK (121"X1" SHOCKWAVE)TRACK (121"X1" SHOCKWAVE)
-
225222840 CLIP, GUIDECLIP, GUIDE
-
235333902 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
245411965 O-RING (.875ID X .125 DIA)O-RING (.875ID X .125 DIA)
-
255132793 SHAFT TAPEREDSHAFT TAPERED
-
265132586 LIMITER STRAP LOWER ATTACHLIMITER STRAP LOWER ATTACH
-
277556301 BUSHINGBUSHING
-
285330394 SPACER BOGIE (INNER)SPACER BOGIE (INNER)
-
291541530-244 WHEEL ASSY (5.35) (.75IDW/IN) (BRIGHT SILVER)WHEEL ASSY (5.35) (.75IDW/IN) (BRIGHT SILVER)
-
305132490 SHAFTSHAFT
-
317558402 WASHER, FLATWASHER, FLAT
-
325333477-067 TUBE (BLACK)TUBE (BLACK)
