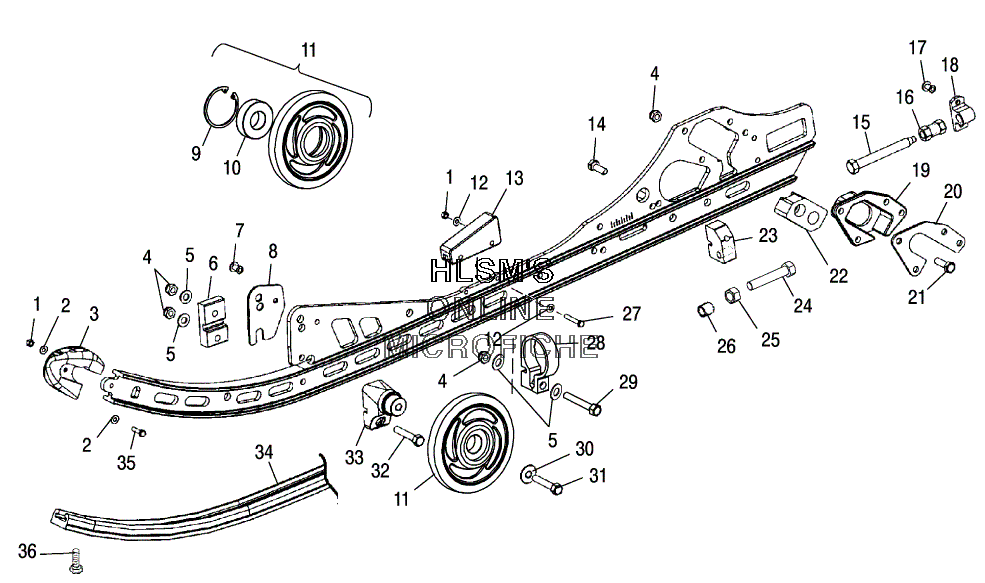

RAIL MOUNTING (M-10) для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
27555792 WASHERWASHER
-
35434374 CAP RAIL TIPCAP RAIL TIP
-
47542324 NUT, NYLOKNUT, NYLOK
-
57558402 WASHER, FLATWASHER, FLAT
-
65132577 BLOCK RAIL SUPPORTBLOCK RAIL SUPPORT
-
77661845 RIVETRIVET
-
85244651 PLATE RAIL SUPPORTPLATE RAIL SUPPORT
-
97718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
103514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
111590275-244 WHEEL SCROLLED ASSY (BRIGHT SILVER METALLIC) (INCL. 9, 10)WHEEL SCROLLED ASSY (BRIGHT SILVER METALLIC) (INCL. 9, 10)
-
127555783 WASHER, FLATWASHER, FLAT
-
135411947 BUMPER JOUNCE, RAILBUMPER JOUNCE, RAIL
-
147512392 BOLTBOLT
-
157517773 SCREWSCREW
-
165132712 NUT TENSION, ADJUSTER (7/16 14)NUT TENSION, ADJUSTER (7/16 14)
-
177621501 RIVETRIVET
-
185132611 BLOCK IDLER BOLT ADJUST THIN (7/16)BLOCK IDLER BOLT ADJUST THIN (7/16)
-
195631188 GUIDE SLIDER, CAST (LEFT)GUIDE SLIDER, CAST (LEFT)
-
195631189 GUIDE SLIDER, CAST (RIGHT)GUIDE SLIDER, CAST (RIGHT)
-
205245045 PLATE COUPLER BLOCKPLATE COUPLER BLOCK
-
217512310 SCREWSCREW
-
225434239 BLOCK SLIDER, LONG M-10 (LEFT)BLOCK SLIDER, LONG M-10 (LEFT)
-
225434240 BLOCK SLIDER, LONG M-10 (RIGHT)BLOCK SLIDER, LONG M-10 (RIGHT)
-
235132584 BLOCK SHOCK PIVOT THREADEDBLOCK SHOCK PIVOT THREADED
-
247515511 SCREWSCREW
-
257542404 NUTNUT
-
265133009 SPACERSPACER
-
277511967 BOLTBOLT
-
285132832 CLAMP RESERVIORCLAMP RESERVIOR
-
297515319 BOLTBOLT
-
307556179 WASHER SPRING, CONWASHER SPRING, CON
-
317515382 BOLTBOLT
-
327512329 BOLTBOLT
-
335631065 BLOCK WHEEL MOUNT LWTBLOCK WHEEL MOUNT LWT
-
345521571 SLIDER, XL SERVICE BASICSLIDER, XL SERVICE BASIC
-
357511975 SCREWSCREW
-
367515199 SCREWSCREW
-
361541782-309 RAIL ASSY, M-10 NATURAL (LEFT) (INCL. 1-3, 13, 17, 18, 27, 35)RAIL ASSY, M-10 NATURAL (LEFT) (INCL. 1-3, 13, 17, 18, 27, 35)
-
361541783-309 RAIL ASSY, M-10 NATURAL (RIGHT) (INCL. 1-3, 13, 17, 18, 27, 35)RAIL ASSY, M-10 NATURAL (RIGHT) (INCL. 1-3, 13, 17, 18, 27, 35)
