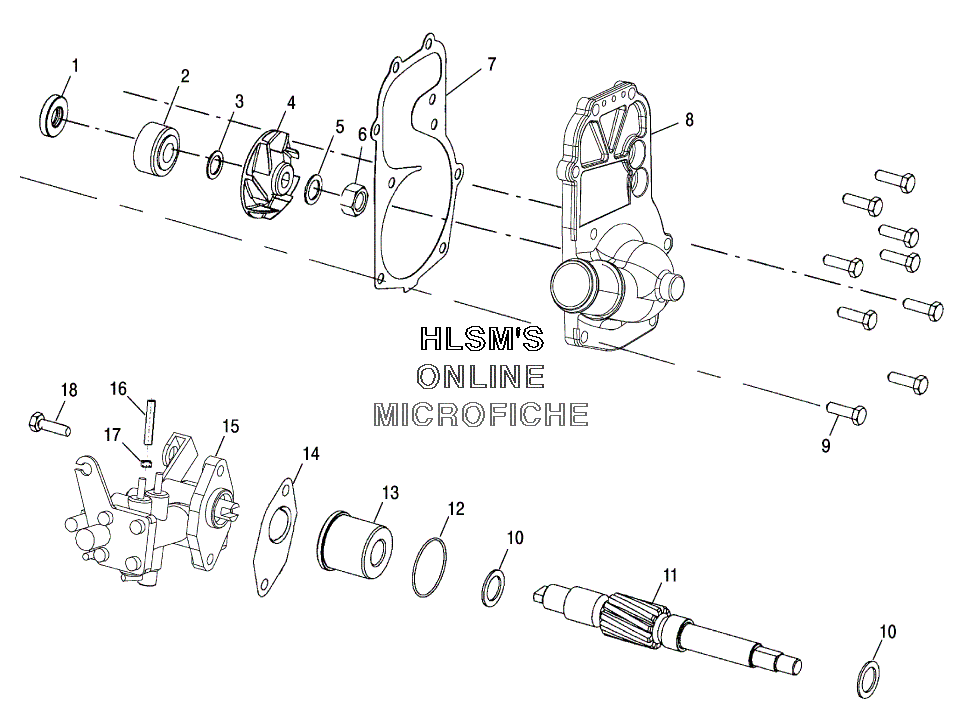

WATER PUMP/OIL PUMP для Polaris 600 CLASSIC (S05ND6ES) - 2005 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S ARSSEAL, TYPE S ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEXAGON NYLOKNUT, HEXAGON NYLOK
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER WATERPUMP HI FLOWCOVER WATERPUMP HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR CROSS SHAFT, 11 STARTGEAR CROSS SHAFT, 11 START
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFT FLANGEDBRNG, PUMP SHAFT FLANGED
-
145811789 GASKETGASKET
-
152540117 OIL PUMP ASSY 0.909OIL PUMP ASSY 0.909
-
168450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
177080603 CLAMPCLAMP
-
187517277 SCREWSCREW
