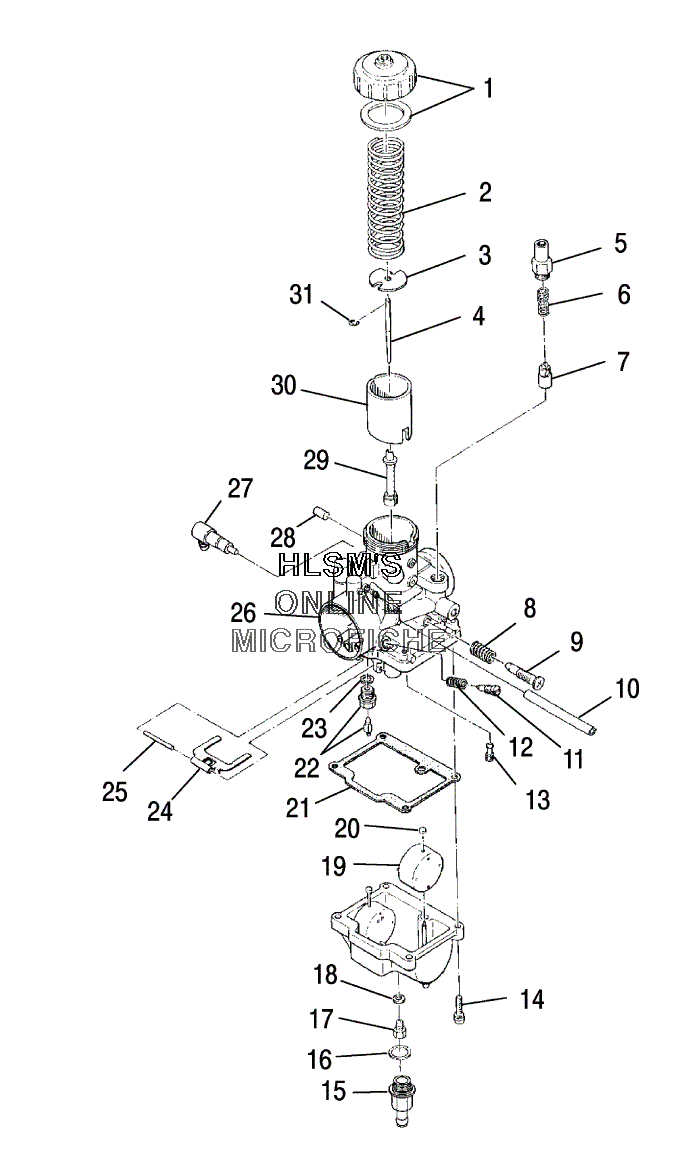

CARBURETOR ASSEMBLY для Polaris TRAIL RMK 136 (S05NJ5BS) - 2005 года выпуска
-
№АртикулНазвание
-
13130184 MIXING CHAMBER ASSY (TOP)MIXING CHAMBER ASSY (TOP)
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATE, THROTTLEPLATE, THROTTLE
-
43131221 JET, NEEDLEJET, NEEDLE
-
53130199 HOLDER, GUIDEHOLDER, GUIDE
-
63130006 SPRING, PLUNGERSPRING, PLUNGER
-
73130328 PLUNGER ASSYPLUNGER ASSY
-
83130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
93130437 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
103131288 HOSEHOSE
-
113130011 SCREW, AIRSCREW, AIR
-
123130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
133130066 JET, PILOTJET, PILOT
-
143130025 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
153130573 NIPPLENIPPLE
-
163130239 O-RINGO-RING
-
173130637 JET, MAIN (MAG)JET, MAIN (MAG)
-
173130129 JET, MAIN HEXAGON HEAD (PTO)JET, MAIN HEXAGON HEAD (PTO)
-
183130014 WASHERWASHER
-
193130430 FLOAT ASSYFLOAT ASSY
-
203130237 CAPCAP
-
213130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
223131146 VALVE, NEEDLE (1.5)VALVE, NEEDLE (1.5)
-
233130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
243130018 ARM, FLOATARM, FLOAT
-
253130361 PIN, FLOATPIN, FLOAT
-
263131565 CARBURETOR ASSY (MAG SIDE) (INCL. ALL)CARBURETOR ASSY (MAG SIDE) (INCL. ALL)
-
263131564 CARBURETOR ASSY (PTO SIDE) (INCL. ALL)CARBURETOR ASSY (PTO SIDE) (INCL. ALL)
-
273086785 VALVE, CHECK ASSYVALVE, CHECK ASSY
-
283130479 CAPCAP
-
293130964 JET, NEEDLEJET, NEEDLE
-
303130372 VALVE, THROTTLEVALVE, THROTTLE
-
313130508 E-RINGE-RING
