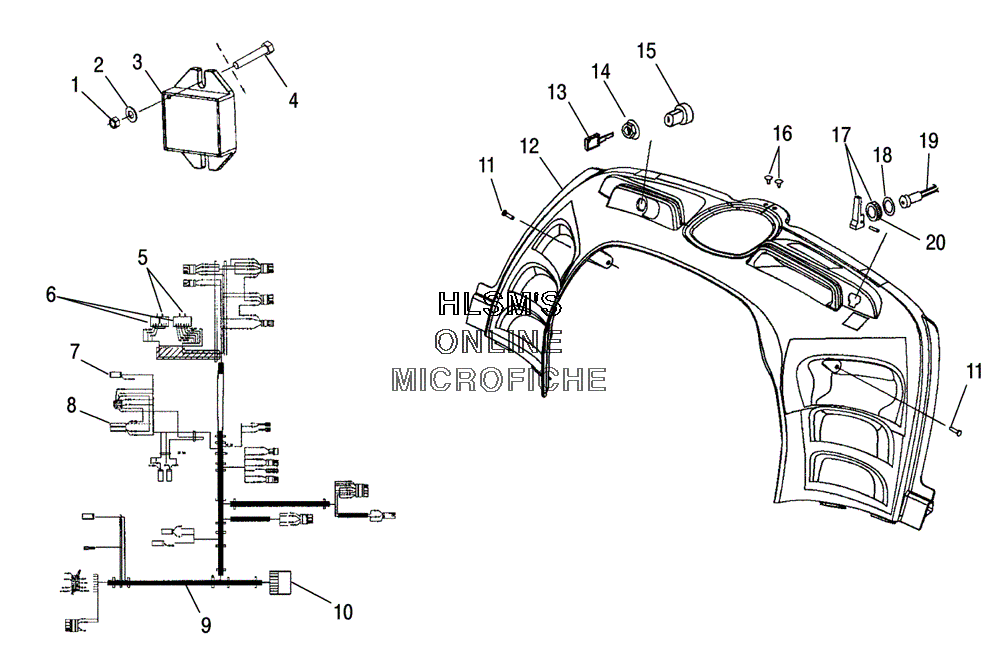

CONSOLE для Polaris TRAIL RMK 136 (S05NJ5BS) - 2005 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555746 WASHERWASHER
-
34010793 REGULATOR AC, 14.3V (MANUAL START)REGULATOR AC, 14.3V (MANUAL START)
-
34010794 REGULATOR AC/DC 14.3V (ELECTRIC START)REGULATOR AC/DC 14.3V (ELECTRIC START)
-
47512031 SCREW (MANUAL START)SCREW (MANUAL START)
-
47517263 SCREW, HEXAGON/SEMS (ELECTRIC START)SCREW, HEXAGON/SEMS (ELECTRIC START)
-
54010193 HOUSING CONNECTORHOUSING CONNECTOR
-
64010192 SOCKETSOCKET
-
74020092 TERMINAL, RINGTERMINAL, RING
-
84020063 HOUSING, PACKHOUSING, PACK
-
92461148 HARNESS MAIN ER FS DIAGHARNESS MAIN ER FS DIAG
-
104020057 HOUSINGHOUSING
-
117515199 SCREWSCREW
-
125435269 CONSOLECONSOLE
-
139990000 N/A, USE COMPONENTSN/A, USE COMPONENTS
-
147547035 NUT, IGNITIONNUT, IGNITION
-
152200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
167670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
172200188 CHOKE CONTROL KIT (INCL. PIN)CHOKE CONTROL KIT (INCL. PIN)
-
187571610 WASHER LOCKWASHER LOCK
-
197080290 CABLE, CHOKE (INCL. 17, 20)CABLE, CHOKE (INCL. 17, 20)
-
207080229 NUTNUT
