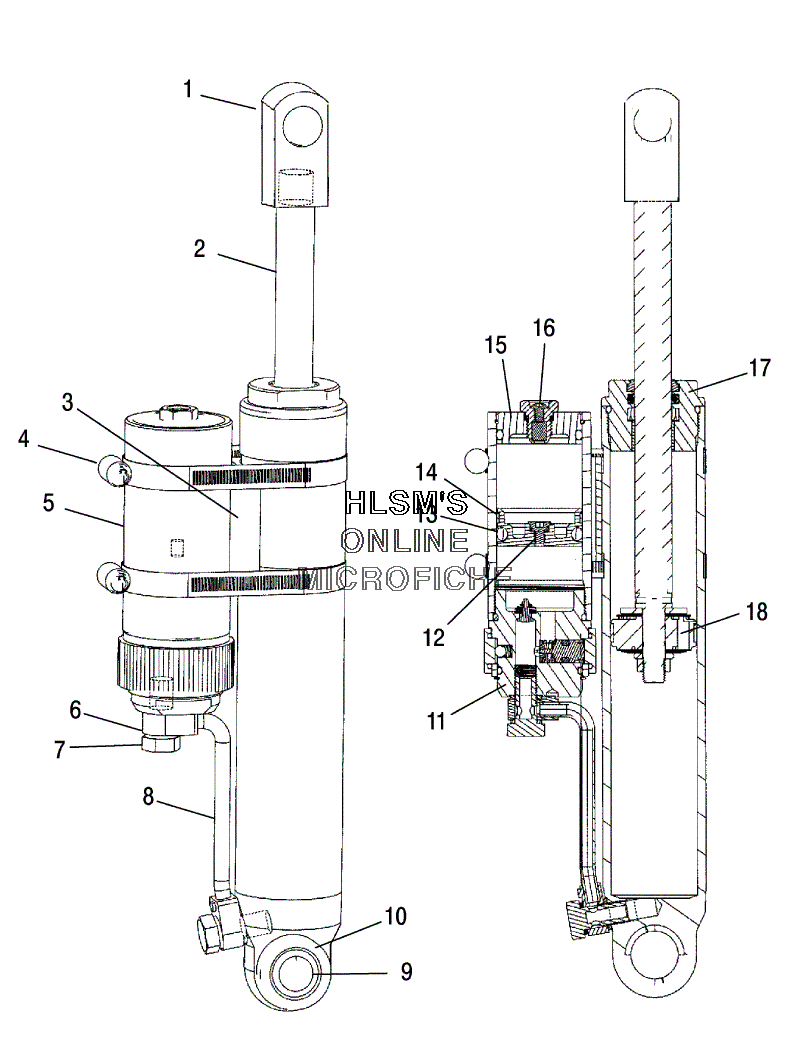

SUSPENSION - REAR TRACK для Polaris TRAIL RMK 136 (S05NJ5BS) - 2005 года выпуска
-
№АртикулНазвание
-
11700024 MOUNT (UPPER)MOUNT (UPPER)
-
21700220 SHAFTSHAFT
-
31700162 ISOLATORISOLATOR
-
41700197 CLAMP HOSECLAMP HOSE
-
51700221 BODY RESERVOIRBODY RESERVOIR
-
6
-
71700200 BOLT BANJOBOLT BANJO
-
81700202 HOSE PRESSUREHOSE PRESSURE
-
91700069 SLEEVESLEEVE
-
101700073 BUSHINGBUSHING
-
111700205 VALVE BODY ASSYVALVE BODY ASSY
-
121700054 BLEED SCREW, IFPBLEED SCREW, IFP
-
131700204 O-RING, IFPO-RING, IFP
-
141700203 IFPIFP
-
151700164 RESERVOIR END CAP WITH VALVERESERVOIR END CAP WITH VALVE
-
151700217 CAP END, RESERVOIRCAP END, RESERVOIR
-
161700218 VALVE PRESSURE WITH SCREWVALVE PRESSURE WITH SCREW
-
161700065 MALE ADAPTERMALE ADAPTER
-
171700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
171700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
181700110 BANDED PISTON .094" ORIFICEBANDED PISTON .094" ORIFICE
-
187042176 SHOCK TRACK, IFP EASY ADJUST (REAR)SHOCK TRACK, IFP EASY ADJUST (REAR)
