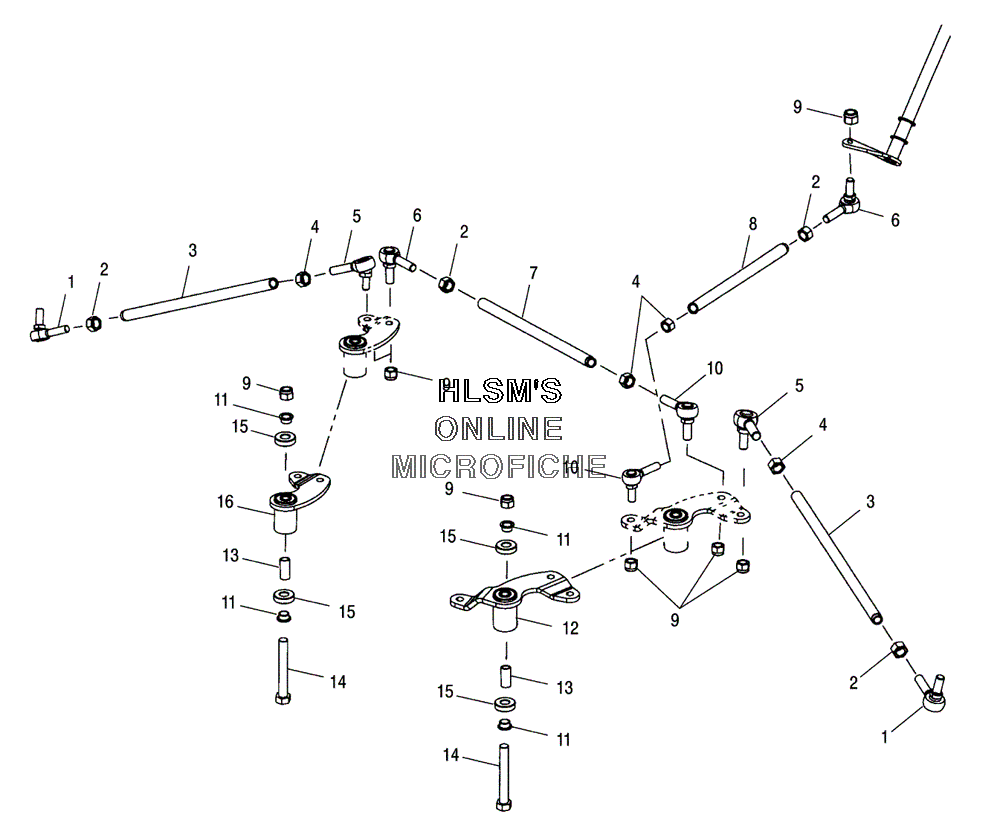

STEERING LINKAGE для Polaris TRAIL RMK 136 (S05NJ5BS) - 2005 года выпуска
-
№АртикулНазвание
-
17061109 ROD END (RIGHT)ROD END (RIGHT)
-
27542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
35334147 TIE RODTIE ROD
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061075 ROD END 3/8 HI-ANGLE, PR (LEFT)ROD END 3/8 HI-ANGLE, PR (LEFT)
-
67061076 ROD END 3/8 HI-ANGLE, PR (RIGHT)ROD END 3/8 HI-ANGLE, PR (RIGHT)
-
75333772 ROD, STEERING RACK (11.50)ROD, STEERING RACK (11.50)
-
85333773-067 ROD DRAHLINK STEEL (12.50)ROD DRAHLINK STEEL (12.50)
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END 3/8 HI-ANGLE, PR (LEFT)ROD END 3/8 HI-ANGLE, PR (LEFT)
-
115132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
121820957 PITMAN ARM ASSY (INCL. 11, 13, 15)PITMAN ARM ASSY (INCL. 11, 13, 15)
-
135133423 SPACER TUBE PITMAN/IDLER ARMSSPACER TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING BALLBEARING BALL
-
161820959 IDLER ARM ASSY (INCL. 11, 13, 15)IDLER ARM ASSY (INCL. 11, 13, 15)
