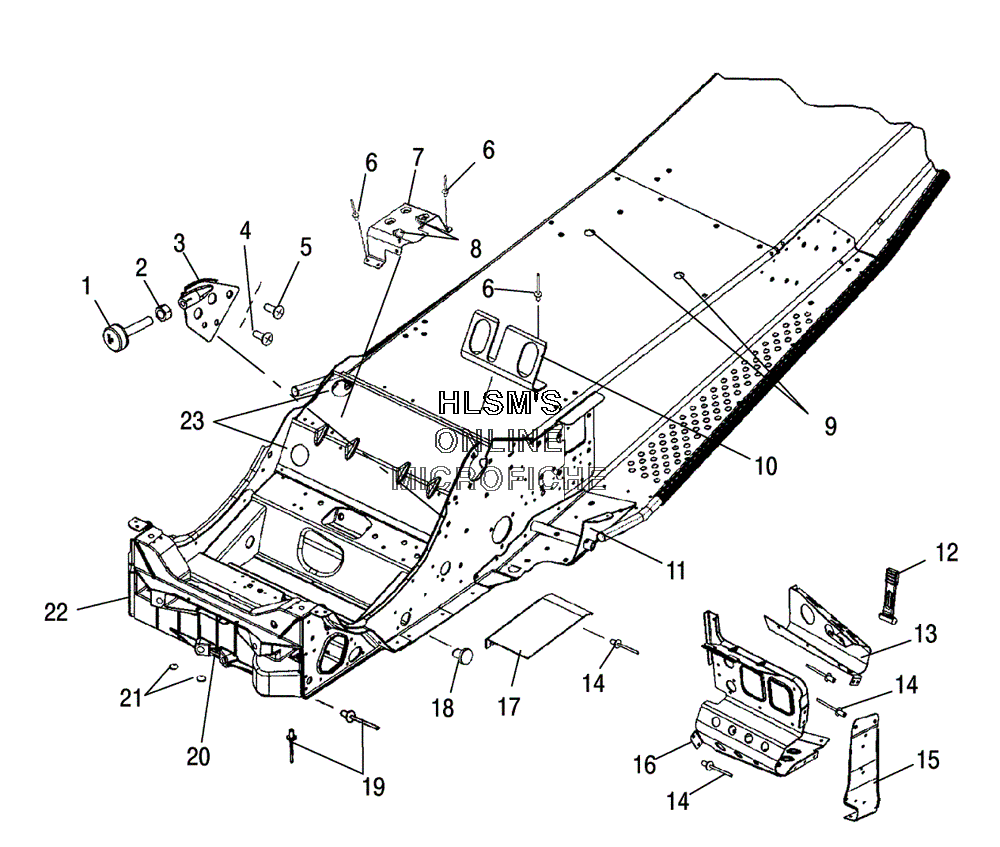

FRAME - CHASSIS #2 для Polaris TRAIL RMK 136 (S05NJ5BS) - 2005 года выпуска
-
№АртикулНазвание
-
13021104 STOP, TORQUE COURSESTOP, TORQUE COURSE
-
27542404 NUTNUT
-
31013399 WELD TORQUE STOPWELD TORQUE STOP
-
47517854 SCREW SPEC YSCREW SPEC Y
-
57517632 SCREWSCREW
-
67621432 RIVETRIVET
-
75245202 BRACKET OIL BOTTLEBRACKET OIL BOTTLE
-
84020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
97080592 CAPLUG (3/4")CAPLUG (3/4")
-
105246177 BRACKET AIRBOXBRACKET AIRBOX
-
112202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
112202598 MOUNT, TRAILING ARM (RIGHT)MOUNT, TRAILING ARM (RIGHT)
-
125433150 STRAPSTRAP
-
135245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
135245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
147661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
155246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
155246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
165245288 FOOTREST (LEFT)FOOTREST (LEFT)
-
165247205 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
175246066 GUARD BELTGUARD BELT
-
187080416 PLUG, HOLEPLUG, HOLE
-
197661130 RIVETRIVET
-
205132292 BULKHEAD MACH (FRONT)BULKHEAD MACH (FRONT)
-
217081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
221014238-309 CHASSIS, SCV 136 FAN NTR ASSYCHASSIS, SCV 136 FAN NTR ASSY
-
237080934 CAPLUG 1 (5/8")CAPLUG 1 (5/8")
