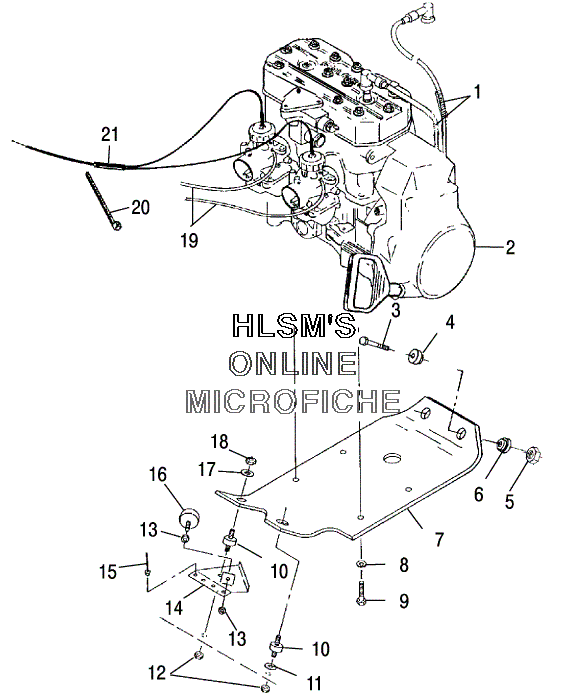

ENGINE MOUNTING W/SHORT BLOCK для Polaris WIDETRAK LX (S05SU4BS) - 2005 года выпуска
-
№АртикулНазвание
-
15521516-10 TUBING, CONVOLUTED (10CM)TUBING, CONVOLUTED (10CM)
-
23086509 ENGINE-EC50PL235, SHORT BLOCK NOTE:ENGINE-EC50PL235, SHORT BLOCK NOTE:
-
37512530 SCREWSCREW
-
45411685 MOUNT ENGINE RUBBER TOPMOUNT ENGINE RUBBER TOP
-
57542522 NUT, FLANGENUT, FLANGE
-
65411686 MOUNT ENGINE RUBBER BOTTOMMOUNT ENGINE RUBBER BOTTOM
-
75242496 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
87553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
97512539 BOLTBOLT
-
103110061 MOUNT, ENG.MOUNT, ENG.
-
117555915 WASHER, FLATWASHER, FLAT
-
127542451 NUT, NYLOKNUT, NYLOK
-
137542414 NUT, HEXAGONNUT, HEXAGON
-
141012048-067 LIMITER, TORQUE (BLACK)LIMITER, TORQUE (BLACK)
-
157661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
163110063 STOP, TORQUE COARSE (1.94 DIA)STOP, TORQUE COARSE (1.94 DIA)
-
177555893 WASHER, FLATWASHER, FLAT
-
187547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
198360009-600 LINE, FUEL (1/8 ID/600 CM.)LINE, FUEL (1/8 ID/600 CM.)
-
207080138 CABLE TIECABLE TIE
-
217080554 CABLE, THROTTLE W/OILCABLE, THROTTLE W/OIL
