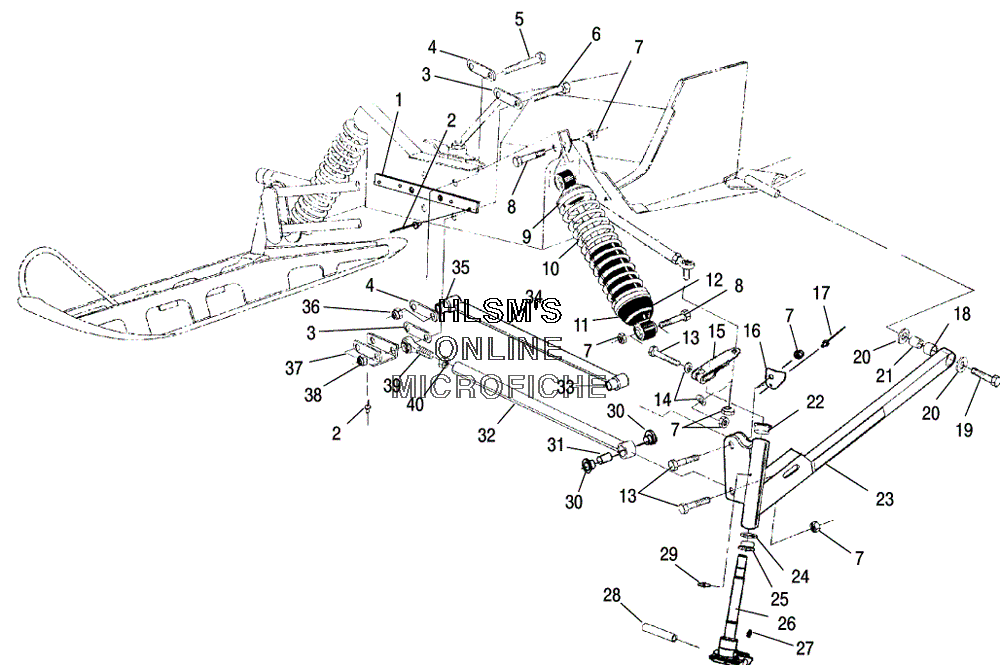

SUSPENSION - FRONT для Polaris WIDETRAK LX (S05SU4BS) - 2005 года выпуска

№

Артикул

Название
1

5240349-067 BRACE, BULKHEAD

BRACE, BULKHEAD

1 670 ₽
2

7661637 RIVET, INTERLOCK Z

RIVET, INTERLOCK Z

150 ₽
3

5211345 STRAP, SPACER BOTTOM

STRAP, SPACER BOTTOM

1 250 ₽
4

5211344 STRAP, SPACER TOP

STRAP, SPACER TOP

1 250 ₽
5

7512582 BOLT

BOLT

1 460 ₽
6

7512678 BOLT

BOLT

3 120 ₽
7

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
8

7515415 SCREW

SCREW

250 ₽
9

5220225 RETAINER TOP

RETAINER TOP

1 670 ₽
10

7041261-067 SPRING, COMP. (BLACK)

SPRING, COMP. (BLACK)

13 520 ₽
11

5210953 RETAINER, SPRING

RETAINER, SPRING

880 ₽
12

7041535 SHOCK, IFS

SHOCK, IFS

37 440 ₽
13

7517583 SCREW, HEXAGON/CAP

SCREW, HEXAGON/CAP

630 ₽
14

7555832 WASHER

WASHER

630 ₽
15

5220326-385 ARM STEERING (CLOUD SILVER)

ARM STEERING (CLOUD SILVER)

6 870 ₽
16

5241569-385 STOP STEERING (CLOUD SILVER/LEFT)

STOP STEERING (CLOUD SILVER/LEFT)

1 040 ₽
16

5241570-385 STOP STEERING CLOUD SILVER/RIGHT)

STOP STEERING CLOUD SILVER/RIGHT)

1 040 ₽
17

7661130 RIVET

RIVET

250 ₽
18

5410872 PIVOT, RUBBER

PIVOT, RUBBER

1 310 ₽
19

7512557 BOLT

BOLT

630 ₽
20

7555721 WASHER

WASHER

250 ₽
21

5010310 TUBE, BUSHING

TUBE, BUSHING

1 460 ₽
22

3573909 BUSHING FLANGE

BUSHING FLANGE

420 ₽
23

1821454 TRAILING ARM, ASSY (CLOUD SILVER/LEFT) (INCL. 18, 21)

TRAILING ARM, ASSY (CLOUD SILVER/LEFT) (INCL. 18, 21)

58 240 ₽
23

1821455 TRAILING ARM, ASSY (CLOUD SLIVER/RIGHT) (INCL. 18, 21)

TRAILING ARM, ASSY (CLOUD SLIVER/RIGHT) (INCL. 18, 21)

60 320 ₽
24

7556509 BUSHING

BUSHING

60 ₽
25

3574208 BUSHING, FLANGED

BUSHING, FLANGED

580 ₽
26

6230102-067 SHAFT, SPINDLE TRAILING (BLACK)

SHAFT, SPINDLE TRAILING (BLACK)

30 160 ₽
27

7080306 FITTING, LUBE. W/BALL CHECK

FITTING, LUBE. W/BALL CHECK

880 ₽
28

5010158 BUSHING, PIVOT

BUSHING, PIVOT

2 140 ₽
29

7080433 FITTING, LUBRICATION THREADED

FITTING, LUBRICATION THREADED

250 ₽
30

5010127 BUSHING RADIUS ROD

BUSHING RADIUS ROD

830 ₽
31

5431486 BUSH, RADIUS ROD PIVOT (OUTER)

BUSH, RADIUS ROD PIVOT (OUTER)

580 ₽
32

1822444-385 WELD RADIUS ROD (LOWER/CLOUD SLIVER)

WELD RADIUS ROD (LOWER/CLOUD SLIVER)

12 480 ₽
33

5411099 BUSHING, RADIUS ROD PIVOT 3/8

BUSHING, RADIUS ROD PIVOT 3/8

2 810 ₽
34

1822420-385 RAD RODIUS FIXED ASSY ((UPPER)/CLOUD SILVER) (INCL. 33, 35)

RAD RODIUS FIXED ASSY ((UPPER)/CLOUD SILVER) (INCL. 33, 35)

12 480 ₽
35

5411095 BUSHING, PIVOT 7/16

BUSHING, PIVOT 7/16

3 430 ₽
36

7542503 NUT, FLEXLOCK,

NUT, FLEXLOCK,

1 870 ₽
37

5242578 BRACKET, RADIUS ROD (BOTTOM)

BRACKET, RADIUS ROD (BOTTOM)

1 870 ₽
38

7542703 NUT FLEXOC

NUT FLEXOC

2 500 ₽
39

7061071 ROD END 1/2 PL .745 WIDE FM (RIGHT)

ROD END 1/2 PL .745 WIDE FM (RIGHT)

9 780 ₽
40

7542711 NUT JAM

NUT JAM

110 ₽
