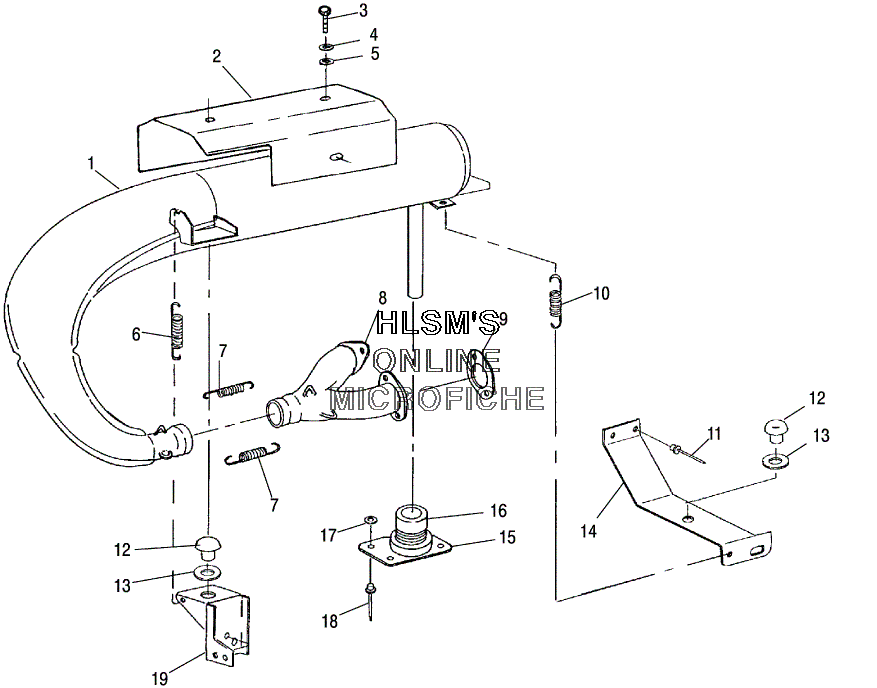

EXHAUST SYSTEM для Polaris WIDETRAK LX (S05SU4BS) - 2005 года выпуска
-
№АртикулНазвание
-
11260932-029 MUFFLER (BLACK)MUFFLER (BLACK)
-
25243289 SHIELD MUFFLERSHIELD MUFFLER
-
37515354 BOLTBOLT
-
47555734 WASHER, FLATWASHER, FLAT
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67042029 SPRINGSPRING
-
77042332 SPRINGSPRING
-
81260501-029 MANIFOLDMANIFOLD
-
107041687 SPRINGSPRING
-
117621452 RIVETRIVET
-
125411576 DAMPENER VIBRATION W/RIBSDAMPENER VIBRATION W/RIBS
-
137556004 WASHERWASHER
-
145243797-067 BRACKET, MUFFLER (REAR/BLACK)BRACKET, MUFFLER (REAR/BLACK)
-
155432465 HAT, EXHAUST STUDHAT, EXHAUST STUD
-
165410502 BOOT, EXHAUSTBOOT, EXHAUST
-
177558212 WASHERWASHER
-
187621467 RIVET, BLINDRIVET, BLIND
-
191012079-067 SUPPORT, MUFFLERSUPPORT, MUFFLER
