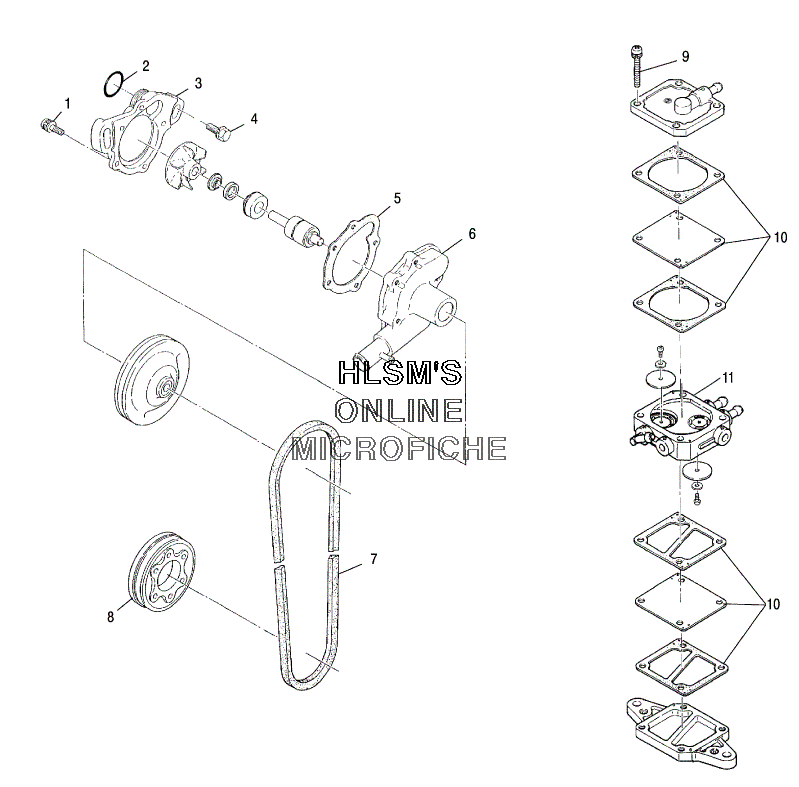

WATER PUMP/FUEL PUMP для Polaris WIDETRAK LX (S05SU4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13084221 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
23082746 O-RINGO-RING
-
33083683 CASING, PUMP 2CASING, PUMP 2
-
43083370 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
53083367 GASKET, WATER PUMPGASKET, WATER PUMP
-
63083471 PUMP, WATER (INCL. 1-3, 5)PUMP, WATER (INCL. 1-3, 5)
-
73082747 BELTBELT
-
83083371 PULLEY (DRIVE)PULLEY (DRIVE)
-
93084591 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
103084590 DIAPHRAGM, GASKET SETDIAPHRAGM, GASKET SET
-
113085490 FUEL PUMP, NON-ASBESTOS ASSY (INCL. 9-10)FUEL PUMP, NON-ASBESTOS ASSY (INCL. 9-10)
Все узлы модели:
- BATTER BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE SHAFT ASSY.
- ELECTRICAL - MAGNETO ASSEMBLY W/COIL
- ENGINE MOUNTING W/SHORT BLOCK
- EXHAUST SYSTEM
- GEARCASE ASSEMBLY
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/HEADLIGHT
- NOSEPAN ASSEMBLY (1)
- NOSEPAN ASSEMBLY (2)
- OIL PUMP ASSEMBLY
- OIL TANK W/AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/IDLER WHEELS
- SEAT W/GAS TANK ASSEMBLY
- SHIFT LINKAGE
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR COUPLER
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- TUNNEL ASSEMBLY
- TUNNEL EXTENSION ASSEMBLY W/RACK
- • WATER PUMP/FUEL PUMP
- WINDSHIELD/GUAGES/HOOD RETAINER
