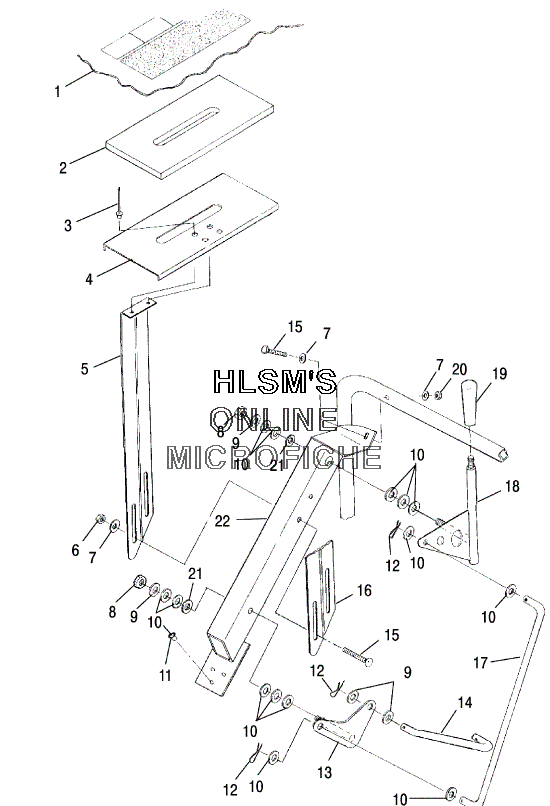

SHIFT LINKAGE для Polaris WIDETRAK LX (S05SU4BS) - 2005 года выпуска
-
№АртикулНазвание
-
17077619 DECAL, SHIFT PATTERNDECAL, SHIFT PATTERN
-
25811768 FOAM, INDICATOR PLATE HYBFOAM, INDICATOR PLATE HYB
-
37661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
45243204 PLATE-INDICATORPLATE-INDICATOR
-
55241897 SUPPORT, INDICATOR PLATE (RIGHT)SUPPORT, INDICATOR PLATE (RIGHT)
-
67542101 NUT HEXAGON LOCKNUT HEXAGON LOCK
-
77558301 WASHER, FLATWASHER, FLAT
-
87542324 NUT, NYLOKNUT, NYLOK
-
97558402 WASHER, FLATWASHER, FLAT
-
107555820 WASHER, FLATWASHER, FLAT
-
117661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
127661203 PIN, COTTERPIN, COTTER
-
131012558 PLATE, PIVOT (LOWER)PLATE, PIVOT (LOWER)
-
145224770 ROD, LINKAGE (LOWER)ROD, LINKAGE (LOWER)
-
157517931 BOLT CARRBOLT CARR
-
165241896 SUPPORT, INDICATOR PLATE(LEFT)SUPPORT, INDICATOR PLATE(LEFT)
-
175224769 ROD, UP. LINKAGEROD, UP. LINKAGE
-
181341250 ROD, SHIFT LEVERROD, SHIFT LEVER
-
195132004 HANDLE-SHIFTHANDLE-SHIFT
-
207542122 NUT NYLOKNUT NYLOK
-
217571619 WASHER, WAVEWASHER, WAVE
-
221012559 SUPPORT, SHIFT LEVER RODSUPPORT, SHIFT LEVER ROD
