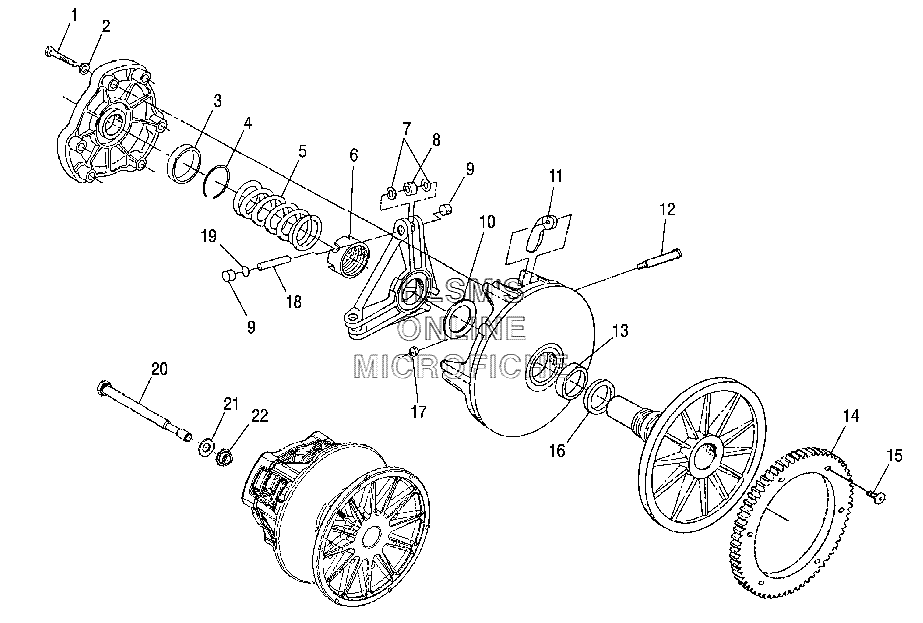

CLUTCH - DRIVE для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041781 SPRING-CLUTCH (DARK BLUE/WHITE)SPRING-CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER, .050SPACER, .050
-
105210753 SPACER, .032SPACER, .032
-
105242981 SPACER, .025SPACER, .025
-
105210752 SPACER, .020SPACER, .020
-
105134018 SPACER, .130SPACER, .130
-
111321588 WT/BUSHING ASSY, 10-58(3)WT/BUSHING ASSY, 10-58(3)
-
127515105 PIN, WEIGHT HARDENEDPIN, WEIGHT HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145134969 RING-GEAR, LIGHTWEIGHTRING-GEAR, LIGHTWEIGHT
-
157515351 BOLTBOLT
-
165010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
177541906 NUT FLEXLOCNUT FLEXLOC
-
185133079 PIN-ROLLER, 1''PIN-ROLLER, 1''
-
192200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
207517501 SCREWSCREW
-
217556003 WASHERWASHER
-
225132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
-1321932 DRIVE CLUTCH ASSY. (INCL. ALL LESS 5, 11)DRIVE CLUTCH ASSY. (INCL. ALL LESS 5, 11)
