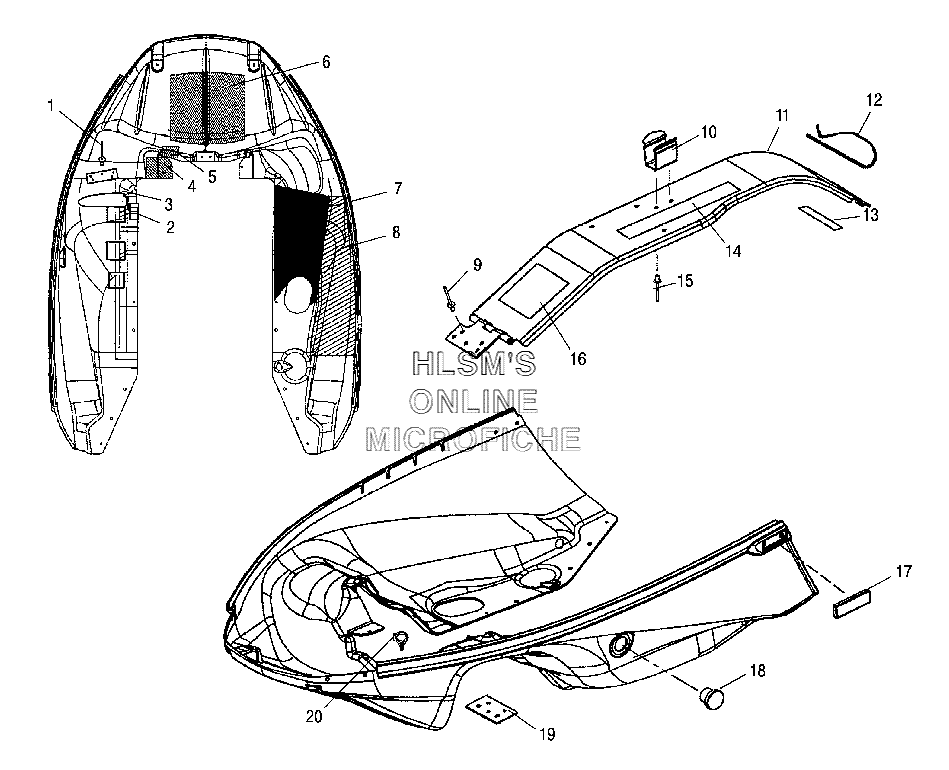

NOSEPAN ASSEMBLY #2 для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17621462 RIVETRIVET
-
25811948 FOILFOIL
-
37080963 RETAINER-''J''CLPRETAINER-''J''CLP
-
37621462 RIVETRIVET
-
37621334 RIVETRIVET
-
45812020 FOIL, TAPEFOIL, TAPE
-
55810949 FOIL, TAPE, 1.5X6FOIL, TAPE, 1.5X6
-
65812036 FOIL, 10X10FOIL, 10X10
-
75812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
85812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
97621402 RIVET, POPRIVET, POP
-
105222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
111013069 GUARD ASSY, CLUTCHGUARD ASSY, CLUTCH
-
127080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
135812352 PAD-CLUTCH GUARDPAD-CLUTCH GUARD
-
147075350 DECAL, ENGINE AND CLUTCHDECAL, ENGINE AND CLUTCH
-
157621429 RIVETRIVET
-
167170930 DECAL-TROUBLE SHOOTDECAL-TROUBLE SHOOT
-
172670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
185433926 PLUG, OBLONGPLUG, OBLONG
-
195211722 PLATE, BACKERPLATE, BACKER
-
204020139 CLIP, ROSEBUDCLIP, ROSEBUD
