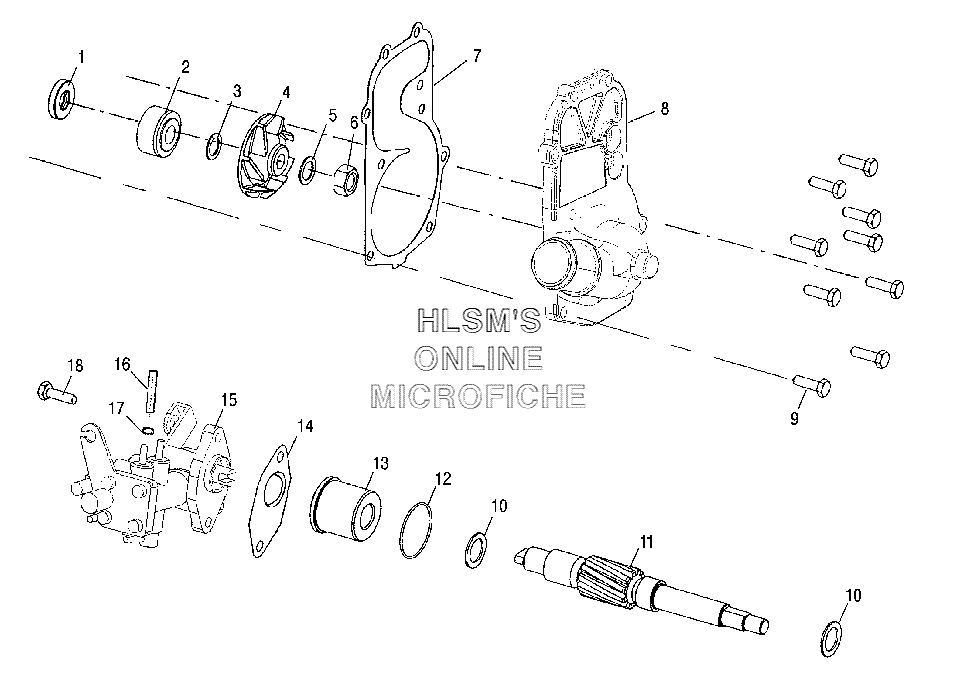

WATER PUMP/OIL PUMP для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE SSEAL, TYPE S
-
23610067 SEALSEAL
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEX, , NYLOKNUT, HEX, , NYLOK
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER-WATERPUMP, HI FLOWCOVER-WATERPUMP, HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR-CROSS SHAFT, 11 STARTGEAR-CROSS SHAFT, 11 START
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFT, FLANGEDBRNG, PUMP SHAFT, FLANGED
-
145811789 GASKETGASKET
-
152540117 OIL PUMP ASSYOIL PUMP ASSY
-
168450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
177080603 CLAMPCLAMP
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CARBURETOR ASSY.
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL MOUNTING
- SEAT ADJUSTABLE
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- STEERING LINKAGE
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- • WATER PUMP/OIL PUMP
