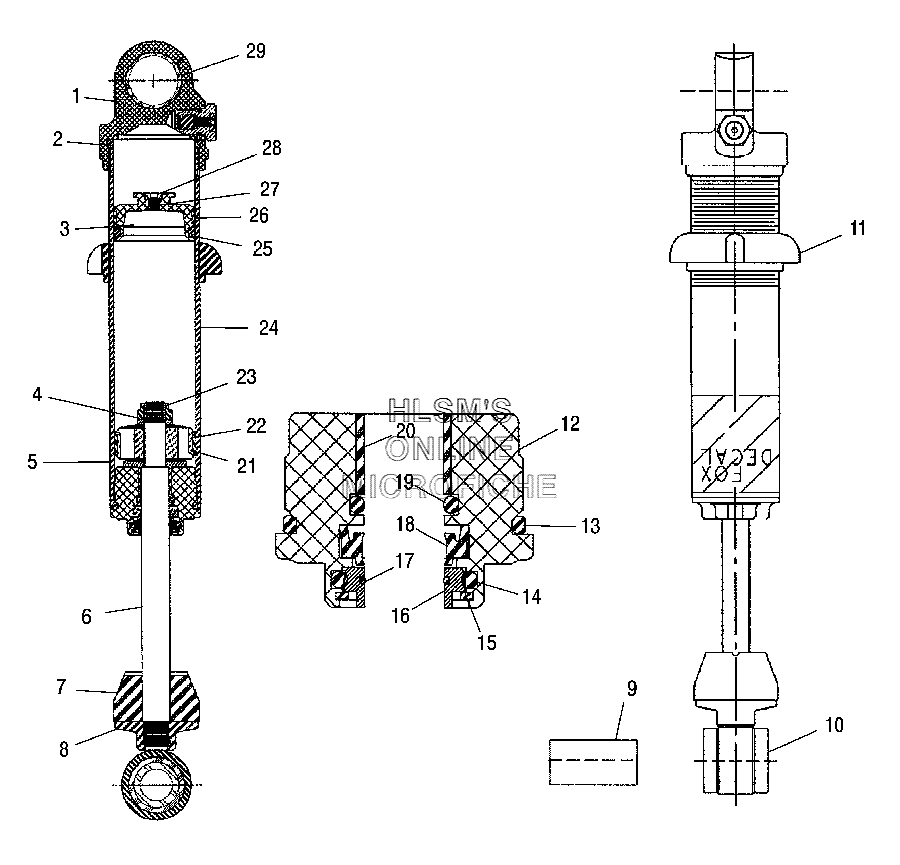

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
11500443 BODY CAP ASSYBODY CAP ASSY
-
21500108 O-RINGO-RING
-
31500187 PISTON-FLOATINGPISTON-FLOATING
-
41500015 PLATE, BACKUPPLATE, BACKUP
-
51500017 PLATE, TOP OUTPLATE, TOP OUT
-
61500247 SHAFTSHAFT
-
71500441 BUMPERBUMPER
-
81500164 EYELET, BASEEYELET, BASE
-
91500310 SLEEVESLEEVE
-
101500309 BUSHINGBUSHING
-
111500494 RING-PRELOAD, NYLONRING-PRELOAD, NYLON
-
121500545 PLATE (INCL. 13-20)PLATE (INCL. 13-20)
-
131500020 O-RINGO-RING
-
141500483 O-RINGO-RING
-
151500486 RING-SNAP, INTERNALRING-SNAP, INTERNAL
-
161500485 SCRAPER-FIST, BRONZESCRAPER-FIST, BRONZE
-
171500484 O-RING 14MM IDX1 MMO-RING 14MM IDX1 MM
-
181500266 U-CUP-4300 URETHU-CUP-4300 URETH
-
191500021 O-RING (INNER)O-RING (INNER)
-
201500488 BEARINGBEARING
-
211500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
222200618 VALVE PISTON KITVALVE PISTON KIT
-
231500016 NUT, LOCKNUT, LOCK
-
241500442 BODYBODY
-
251500003 O-RING, ENDCAPO-RING, ENDCAP
-
261500006 RING, PISTON, FLOATINGRING, PISTON, FLOATING
-
271500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
281500018 SCREWSCREW
-
291500444 BEARINGBEARING
-
-7042224 SHOCK-FRONT TRACK (INCL. ALL)SHOCK-FRONT TRACK (INCL. ALL)
