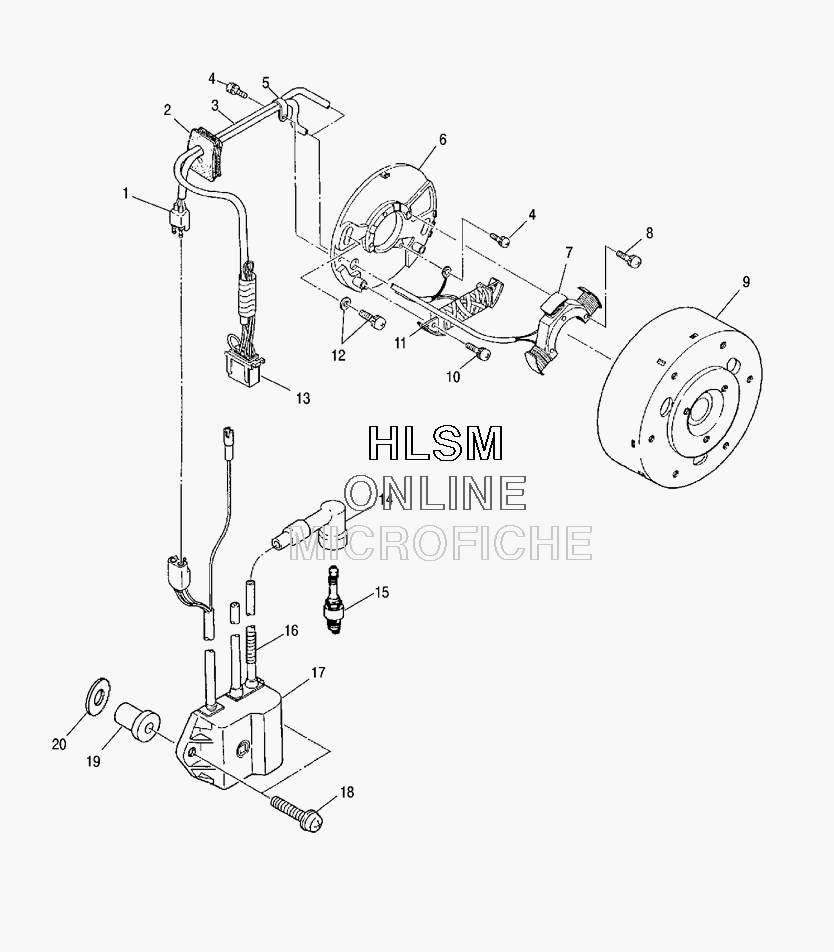

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris WIDETRAK LX AND EURO (S07SU4BS/BE) - 2007 года выпуска
-
№АртикулНазвание
-
13083909 COUPLERCOUPLER
-
23082969 GROMMETGROMMET
-
33087007 HARNESS-WIRE (INCL. 2)HARNESS-WIRE (INCL. 2)
-
43081260 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
53081296 CLAMPCLAMP
-
63087262 ASM-PLATEASM-PLATE
-
63087004 ASM-PLATE (INCL. 1-8, 10, 11, 13)ASM-PLATE (INCL. 1-8, 10, 11, 13)
-
63083987 PLATE, COILPLATE, COIL
-
73083991 STATOR 1STATOR 1
-
83082365 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
93087005 ASM-FLYWHEELASM-FLYWHEEL
-
103083423 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
113083984 COIL, EXCITERCOIL, EXCITER
-
123082175 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
133081513 COUPLER, MALECOUPLER, MALE
-
144020129 RESISTOR PLUG CAPRESISTOR PLUG CAP
-
153070166 SPARKPLUG, RN3CSPARKPLUG, RN3C
-
165521516-10 TUBING-CONVOLUTED, 10CMTUBING-CONVOLUTED, 10CM
-
173087006 COIL-IGNITIONCOIL-IGNITION
-
183083784 SCREW AND WASHERSCREW AND WASHER
-
193083240 NUT-RUBBERNUT-RUBBER
-
203087008 WASHERWASHER
