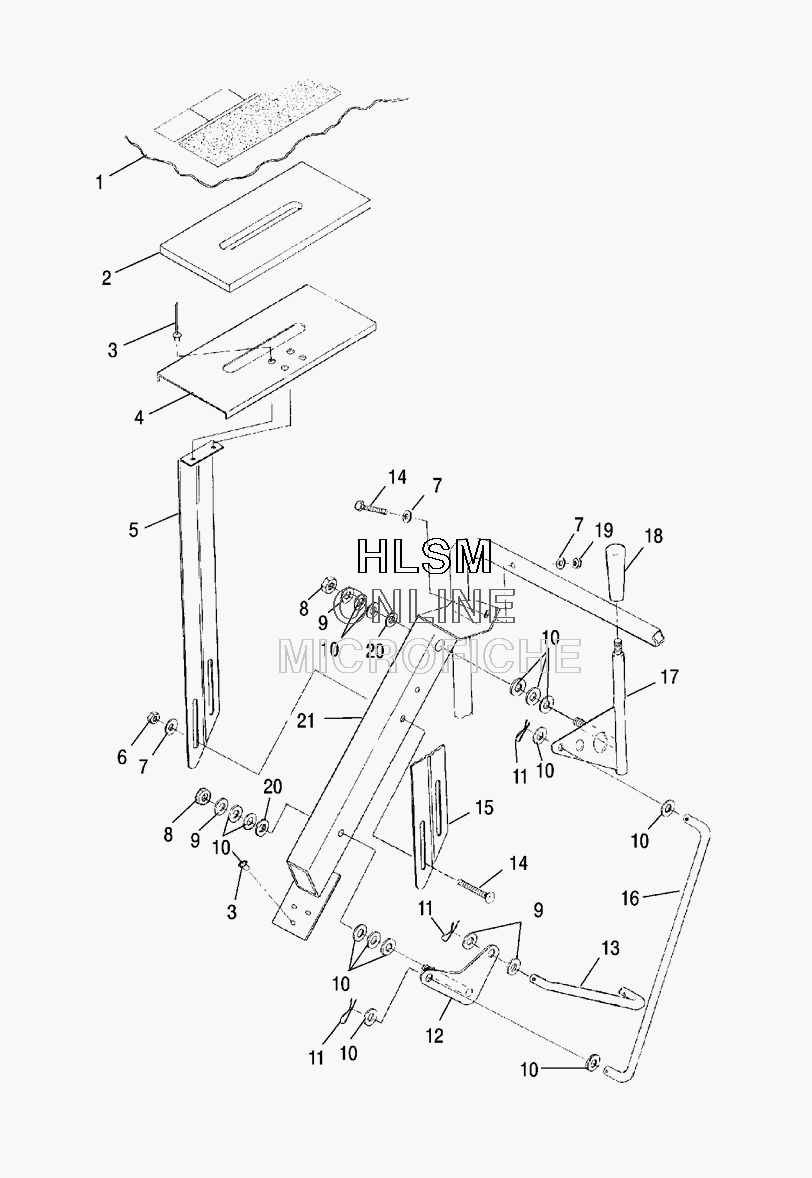

SHIFT LINKAGE для Polaris WIDETRAK LX AND EURO (S07SU4BS/BE) - 2007 года выпуска
-
№АртикулНазвание
-
17077619 DECAL, SHIFT PATTERNDECAL, SHIFT PATTERN
-
25811768 FOAM, INDICATOR PLATE, HYBFOAM, INDICATOR PLATE, HYB
-
37661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
45243204 PLATE-INDICATORPLATE-INDICATOR
-
55241897 SUPPORT, RIGHT HAND, INDIC.PLATESUPPORT, RIGHT HAND, INDIC.PLATE
-
67542101 NUT HEX-LOCKNUT HEX-LOCK
-
77558301 WASHER, FLATWASHER, FLAT
-
87542324 NUT, NYLOKNUT, NYLOK
-
97558402 WASHER, FLATWASHER, FLAT
-
107555820 WASHER, FLATWASHER, FLAT
-
117661203 PIN, COTTERPIN, COTTER
-
121012558 PLATE, LOWER PIVOTPLATE, LOWER PIVOT
-
135224770 ROD, LINKAGE, LOWERROD, LINKAGE, LOWER
-
147517931 BOLT-CARR 1/4-20 UNC-2AX1.5-YBOLT-CARR 1/4-20 UNC-2AX1.5-Y
-
155241896 SUPPORT, LEFT HAND, INDIC.PLATESUPPORT, LEFT HAND, INDIC.PLATE
-
165224769 ROD, UP.LINKAGEROD, UP.LINKAGE
-
171341250 ROD, SHIFT LEVERROD, SHIFT LEVER
-
185132004 HANDLE-SHIFTHANDLE-SHIFT
-
197542122 NUT-NYLOKNUT-NYLOK
-
207571619 WASHER, WAVEWASHER, WAVE
-
211012559 SUPPORT, SHIFT LEVER RODSUPPORT, SHIFT LEVER ROD
