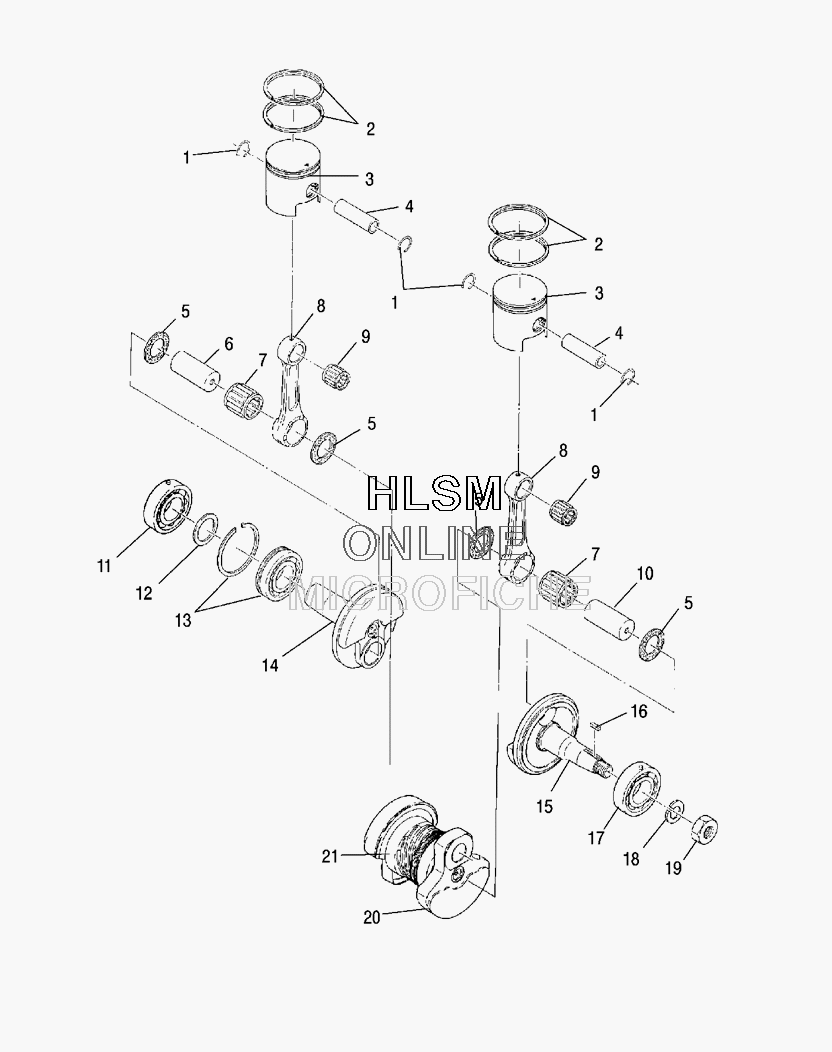

PISTON AND CRANKSHAFT для Polaris WIDETRAK LX AND EURO (S07SU4BS/BE) - 2007 года выпуска
-
№АртикулНазвание
-
13083839 CLIP, PISTON PINCLIP, PISTON PIN
-
23084342 PISTON, RING, STANDARDPISTON, RING, STANDARD
-
23084343 PISTON, RING, .010''/.25MMPISTON, RING, .010''/.25MM
-
23084344 PISTON, RING, .020''/.50 MM O/SPISTON, RING, .020''/.50 MM O/S
-
33085458 PISTON, STANDARD (INCL. 1)PISTON, STANDARD (INCL. 1)
-
33085459 PISTON, .010''/.25MM O/S (INCL. 1)PISTON, .010''/.25MM O/S (INCL. 1)
-
33085460 SET, PISTON, .020''/.50MM O/S (INCL. 1)SET, PISTON, .020''/.50MM O/S (INCL. 1)
-
43083858 PIN, PISTONPIN, PISTON
-
53083277 SPACER, CRANKPINSPACER, CRANKPIN
-
63083456 PIN, CRANK, 2PIN, CRANK, 2
-
73085628 BEARING, LARGE ENDBEARING, LARGE END
-
83083252 ROD-CONNECTINGROD-CONNECTING
-
93085595 BEARING, SMALL ENDBEARING, SMALL END
-
103083233 PIN, CRANK 1PIN, CRANK 1
-
113085205 BALL BEARINGBALL BEARING
-
123085203 SPACERSPACER
-
133085204 BALL BEARINGBALL BEARING
-
143089531 CRANKSHAFT 3, PTOCRANKSHAFT 3, PTO
-
153089530 CRANKSHAFT AY. (INCL. 5-8, 10-15, 17, 21, 20)CRANKSHAFT AY. (INCL. 5-8, 10-15, 17, 21, 20)
-
153086835 CRANKSHAFT 1 (MAG SIDE)CRANKSHAFT 1 (MAG SIDE)
-
163081543 KEY WOODRUFFKEY WOODRUFF
-
173086878 BEARING, BALLBEARING, BALL
-
183083094 WASHER-SPRINGWASHER-SPRING
-
193083093 NUTNUT
-
203083713 CRANKSHAFT 2 (INCL. 6, 10)CRANKSHAFT 2 (INCL. 6, 10)
-
213084601 BEARING, BALLBEARING, BALL
