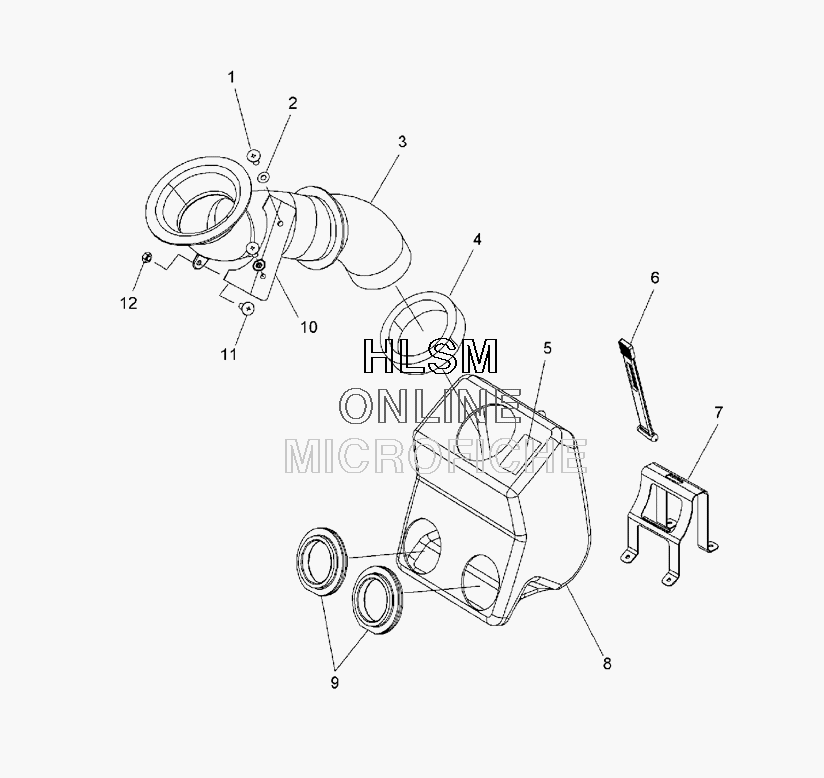

AIR INTAKE SYSTEM для Polaris 600 RR EURO (S09MX6FE) - 2009 года выпуска
-
№АртикулНазвание
-
17512253 SCREWSCREW
-
27552604 WASHERWASHER
-
35436023 TUBE-INTAKETUBE-INTAKE
-
45813143 FOAM-TUBE/AIRBOXFOAM-TUBE/AIRBOX
-
57073426 DECAL, GREASINGDECAL, GREASING
-
65436090 STRAP-RUBBERSTRAP-RUBBER
-
81203721 ASM-AIRBOX SILENCER, 600 RR (INCL. 5)ASM-AIRBOX SILENCER, 600 RR (INCL. 5)
-
95413314 BOOT-CARB, 40MM, 600 RACEBOOT-CARB, 40MM, 600 RACE
-
105249079 BRKT-TUBE INTAKEBRKT-TUBE INTAKE
-
117515166 SCREWSCREW
-
127542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
